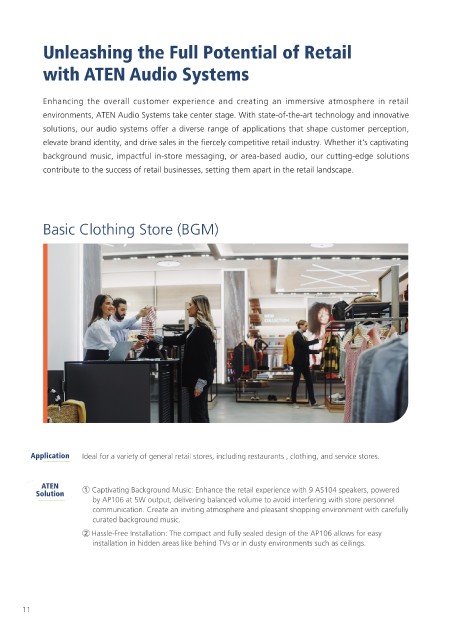

Unleashing the Full Potential of Retail

with ATEN Audio Systems

Enhancing the overall customer experience and creating an immersive atmosphere in retail ATEN Solution Diagram
environments, ATEN Audio Systems take center stage. With state-of-the-art technology and innovative
solutions, our audio systems offer a diverse range of applications that shape customer perception,

elevate brand identity, and drive sales in the fiercely competitive retail industry. Whether it's captivating
background music, impactful in-store messaging, or area-based audio, our cutting-edge solutions
contribute to the success of retail businesses, setting them apart in the retail landscape.

Basic Clothing Store (BGM)

60W Mono Hi-Z Power Amplifier

AP106

• A Class D power amp offering 60W power to 70V or 100V
audio systems.
• Inbuilt 2-band shelf EQ for 6 dB treble and bass control.

• Power Saving Mode – shuts down with -50 dBu or less audio
input for 30 mins and reactivates at -30 dBu.

• Integrated protection – safeguards against amp shortcuts,
output voltage variations, high-frequency overload, and
overheating.

4" Coaxial Ceiling Loudspeaker
Application Ideal for a variety of general retail stores, including restaurants , clothing, and service stores.
AS104
• Coaxial design using premium components: 4” high-output
ATEN
Solution ① Captivating Background Music: Enhance the retail experience with 9 AS104 speakers, powered driver and a 20 mm dome tweeter.
by AP106 at 5W output, delivering balanced volume to avoid interfering with store personnel
communication. Create an inviting atmosphere and pleasant shopping environment with carefully • 100 – 20 kHz bandwidth for consistent, full-range space
curated background music. coverage, reducing speaker count.
② Hassle-Free Installation: The compact and fully sealed design of the AP106 allows for easy • Switchable between 8 Ω low-impedance speaker or a 70V/100V
installation in hidden areas like behind TVs or in dusty environments such as ceilings. distributed system.
• Effortless installation with magnetic grille, dog leg mount, and
cutout template.
