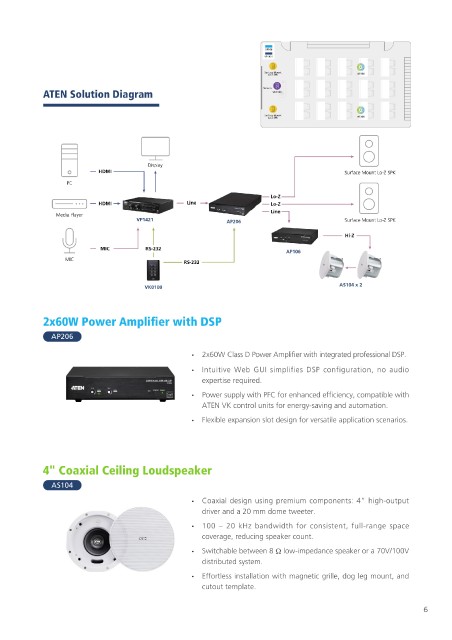

ATEN Solution Diagram
 Advanced K-12 Classroom


































            2x60W Power Amplifier with DSP

               AP206

                                                   •   2x60W Class D Power Amplifier with integrated professional DSP.
 Application  Ideal for acoustically-oriented classrooms, including audio-visual classrooms.
                                                   •   Intuitive Web GUI simplifies DSP configuration, no audio
                                                      expertise required.
 ATEN  ① Seamless Multi-Source Switching: The ATEN VP1421 enables smooth switching between   •   Power supply with PFC for enhanced efficiency, compatible with
 Solution  computers, media players, and the teacher's microphone, allowing for efficient multi-source   ATEN VK control units for energy-saving and automation.
 management.
                                                   •   Flexible expansion slot design for versatile application scenarios.
 ② Optimization of Existing Audio Equipment: Utilize the AP206 amplifier with low impedance
 output to power the existing high-quality cabinet speakers in the classroom, delivering a layered
 sound effect.
 ③ Comprehensive Sound Quality Enhancement: To address insufficient sound pressure at the rear
 of the classroom, arrange AS104 ceiling speakers and utilize the AP2's DSP Delay function to   4" Coaxial Ceiling Loudspeaker
 synchronize the sound of the front and rear speakers, resulting in amplified sound pressure.
               AS104
 ④ Simplified Operation: Easily switch between different DSP Presets using VK control, ensuring the
 entire system can be used without requiring professional audio and video knowledge.  •   Coaxial design using premium components: 4” high-output
                                                      driver and a 20 mm dome tweeter.

                                                   •   100 – 20 kHz bandwidth for consistent, full-range space
                                                      coverage, reducing speaker count.
                                                   •   Switchable between 8 Ω low-impedance speaker or a 70V/100V
                                                      distributed system.
                                                   •   Effortless installation with magnetic grille, dog leg mount, and
                                                      cutout template.
