Empowering Corporate Collaboration

 with Audio Systems

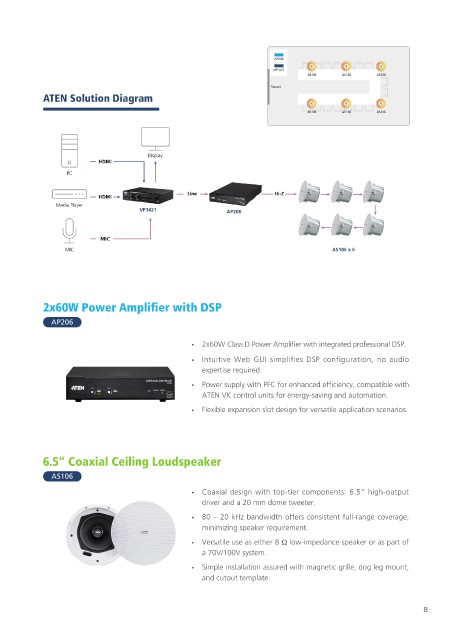

 Corporate audio systems are instrumental in fostering a seamless communication and collaboration   ATEN Solution Diagram
 environment within organizations. Equipped with advanced technology and innovative solutions, these
 systems deliver superior audio quality, improved intelligibility, and intuitive controls. Addressing a wide

 range of corporate requirements, the ATEN Audio APAS Series offers customized audio solutions that
 seamlessly integrate with AV equipment, resulting in heightened productivity and increased output.






 Midsize meeting room














            2x60W Power Amplifier with DSP

               AP206


                                                   •   2x60W Class D Power Amplifier with integrated professional DSP.
                                                   •   Intuitive Web GUI simplifies DSP configuration, no audio
                                                      expertise required.
                                                   •   Power supply with PFC for enhanced efficiency, compatible with
                                                      ATEN VK control units for energy-saving and automation.

                                                   •   Flexible expansion slot design for versatile application scenarios.


 Application  Ideal for small and midsized multi-purpose meeting rooms accommodating 6-12 people.


            6.5" Coaxial Ceiling Loudspeaker
 ATEN
 Solution  ① Clear and Crisp Audio: Enhance audio distribution with the AP206 and AS106 combination.   AS106
 The AP206 provides low impedance output for improved sound quality and higher wattage for
 multimedia video playback.                        •   Coaxial design with top-tier components: 6.5” high-output
 ② Scalability and Flexibility: The AP206 can be seamlessly replaced with the AP106 for general   driver and a 20 mm dome tweeter.
 conference use, offering scalability and flexibility.  •   80 – 20 kHz bandwidth offers consistent full-range coverage,
 ③ Seamless Integration: Achieve multi-source audio and video switching by pairing the VP1421 with   minimizing speaker requirement.
 the AP206.
                                                   •   Versatile use as either 8 Ω low-impedance speaker or as part of
                                                      a 70V/100V system.
                                                   •   Simple installation assured with magnetic grille, dog leg mount,
                                                      and cutout template.
