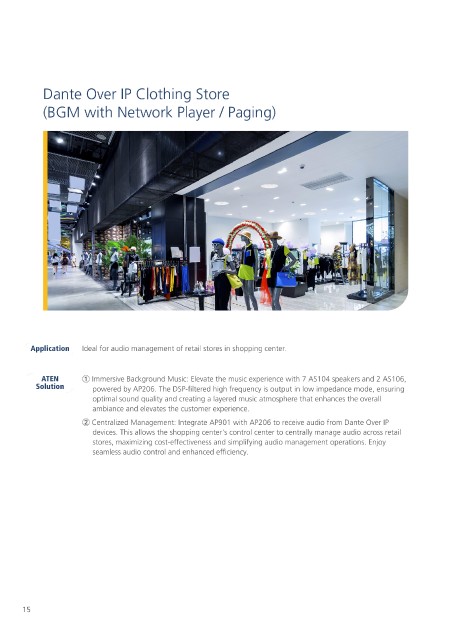

Dante Over IP Clothing Store                                                                                           ATEN Solution Diagram

            (BGM with Network Player / Paging)



























                                                                                                                                   Dante Expansion Card

                                                                                                                                      AP901 Dante

                                                                                                                                                                          •   Enhance AP2 Series AMP with Dante compatibility.
                                                                                                                                                                          •   Supports 44.1k / 48kHz Sampling Rate.
         Application   Ideal for audio management of retail stores in shopping center.                                                                                    •   Offering a straightforward and dependable AoIP solution.




            ATEN       ① Immersive Background Music: Elevate the music experience with 7 AS104 speakers and 2 AS106,
          Solution       powered by AP206. The DSP-filtered high frequency is output in low impedance mode, ensuring               2x60W Power Amplifier with DSP
                         optimal sound quality and creating a layered music atmosphere that enhances the overall                      AP206
                         ambiance and elevates the customer experience.                                                                                                   •   2x60W Class D Power Amplifier with integrated professional DSP.

                       ② Centralized Management: Integrate AP901 with AP206 to receive audio from Dante Over IP                                                           •   Intuitive Web GUI simplifies DSP configuration.
                         devices. This allows the shopping center's control center to centrally manage audio across retail
                         stores, maximizing cost-effectiveness and simplifying audio management operations. Enjoy                                                         •   Power supply with PFC for enhanced efficiency, compatible with
                         seamless audio control and enhanced efficiency.                                                                                                     ATEN VK control units for energy-saving and automation.
                                                                                                                                                                          •   Flexible expansion slot design for versatile application scenarios.



                                                                                                                                   60W Mono Hi-Z Power Amplifier

                                                                                                                                      AP106
                                                                                                                                                                          •   A Class D power amp offering 60W power to 70V or 100V
                                                                                                                                                                             audio systems.
                                                                                                                                                                          •   Inbuilt 2-band shelf EQ for 6 dB treble and bass control.
                                                                                                                                                                          •   Power Saving Mode – shuts down with -50 dBu or less audio
                                                                                                                                                                             input for 30 mins and reactivates at -30 dBu.
                                                                                                                                                                          •   Integrated protection – safeguards against amp shortcuts,
                                                                                                                                                                             output voltage variations, high-frequency overload, and
                                                                                                                                                                             overheating.
