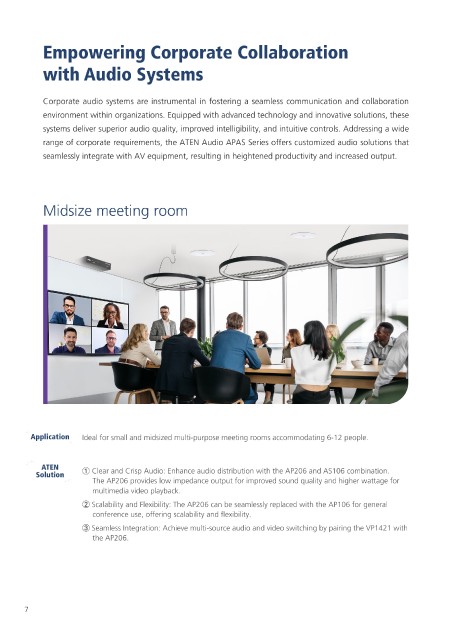

Empowering Corporate Collaboration

            with Audio Systems




            Corporate audio systems are instrumental in fostering a seamless communication and collaboration                       ATEN Solution Diagram
            environment within organizations. Equipped with advanced technology and innovative solutions, these
            systems deliver superior audio quality, improved intelligibility, and intuitive controls. Addressing a wide

            range of corporate requirements, the ATEN Audio APAS Series offers customized audio solutions that
            seamlessly integrate with AV equipment, resulting in heightened productivity and increased output.






            Midsize meeting room














                                                                                                                                   2x60W Power Amplifier with DSP

                                                                                                                                      AP206


                                                                                                                                                                          •   2x60W Class D Power Amplifier with integrated professional DSP.
                                                                                                                                                                          •   Intuitive Web GUI simplifies DSP configuration, no audio
                                                                                                                                                                             expertise required.
                                                                                                                                                                          •   Power supply with PFC for enhanced efficiency, compatible with
                                                                                                                                                                             ATEN VK control units for energy-saving and automation.

                                                                                                                                                                          •   Flexible expansion slot design for versatile application scenarios.


         Application   Ideal for small and midsized multi-purpose meeting rooms accommodating 6-12 people.


                                                                                                                                   6.5" Coaxial Ceiling Loudspeaker
            ATEN
          Solution     ① Clear and Crisp Audio: Enhance audio distribution with the AP206 and AS106 combination.                      AS106
                         The AP206 provides low impedance output for improved sound quality and higher wattage for
                         multimedia video playback.                                                                                                                       •   Coaxial design with top-tier components: 6.5” high-output
                       ② Scalability and Flexibility: The AP206 can be seamlessly replaced with the AP106 for general                                                        driver and a 20 mm dome tweeter.
                         conference use, offering scalability and flexibility.                                                                                            •   80 – 20 kHz bandwidth offers consistent full-range coverage,
                       ③ Seamless Integration: Achieve multi-source audio and video switching by pairing the VP1421 with                                                     minimizing speaker requirement.
                         the AP206.
                                                                                                                                                                          •   Versatile use as either 8 Ω low-impedance speaker or as part of
                                                                                                                                                                             a 70V/100V system.
                                                                                                                                                                          •   Simple installation assured with magnetic grille, dog leg mount,
                                                                                                                                                                             and cutout template.
