Advanced Clothing Store (BGM / Paging)

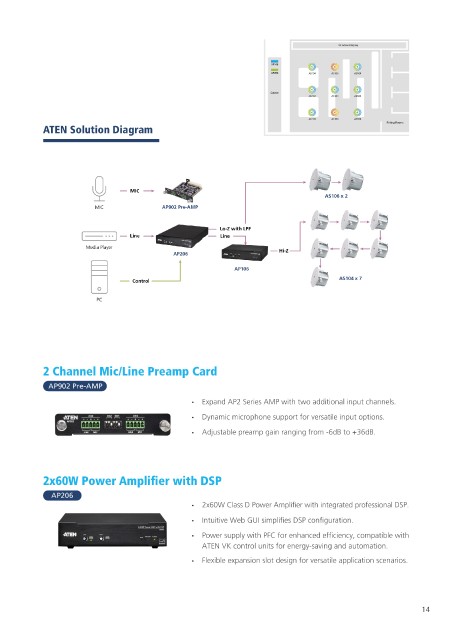

ATEN Solution Diagram

Application Ideal for retail stores that prioritize exceptional background music performance.

ATEN ① Immersive Background Music: Elevate the music experience with 7 AS104 speakers and 2 AS106,
Solution powered by AP206. The DSP-filtered high frequency is output in low impedance mode, ensuring 2 Channel Mic/Line Preamp Card
optimal sound quality and creating a layered music atmosphere that enhances the overall
ambiance and elevates the customer experience. AP902 Pre-AMP

② Versatile Functionality: The AP902, when integrated with AP206, offers versatile capabilities. It • Expand AP2 Series AMP with two additional input channels.
can be utilized as a broadcasting tool, enabling space events, promotions, and live performances Dynamic microphone support for versatile input options.
to be supported with clear and immersive sound. •
• Adjustable preamp gain ranging from -6dB to +36dB.

2x60W Power Amplifier with DSP

AP206
• 2x60W Class D Power Amplifier with integrated professional DSP.

• Intuitive Web GUI simplifies DSP configuration.
• Power supply with PFC for enhanced efficiency, compatible with
ATEN VK control units for energy-saving and automation.
• Flexible expansion slot design for versatile application scenarios.
