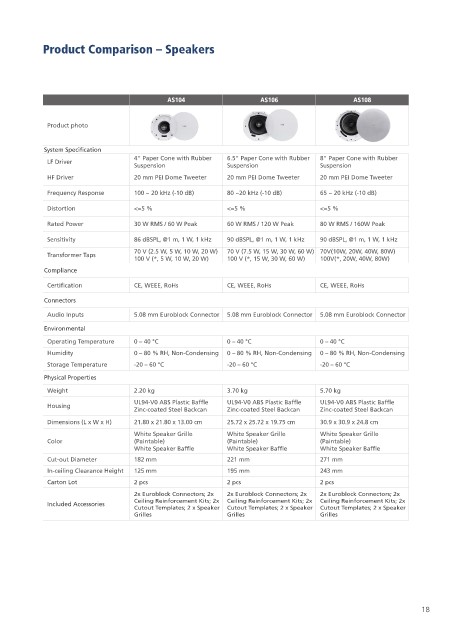

Product Comparison – Power Amplifiers    Product Comparison – Speakers







 AP106  AP206  AP212                         AS104                    AS106                   AS108


 Product photo  Product photo


             System Specification
 AMP Type  Class D  Class D  Class D  4" Paper Cone with Rubber   6.5" Paper Cone with Rubber   8" Paper Cone with Rubber
             LF Driver
 Lo-Z Power Rated  N/A  2x60W  2x120W  Suspension            Suspension              Suspension
 Hi-Z Power Rated  60W  120W  240W  HF Driver  20 mm PEI Dome Tweeter  20 mm PEI Dome Tweeter  20 mm PEI Dome Tweeter
 Protection Circuit  Y  Y  Y  Frequency Response  100 ~ 20 kHz (-10 dB)  80 ~20 kHz (-10 dB)  65 ~ 20 kHz (-10 dB)
 THD+N  <0.1%, 3dB before clipping  <0.1%, 3dB before clipping  <0.1%, 3dB before clipping
             Distortion             <=5 %                    <=5 %                   <=5 %
 AC IN  100-240V~, 50/60Hz  100-240V~, 50/60Hz  100-240V~, 50/60Hz
 Standby Mode  Y  Y  Y  Rated Power  30 W RMS / 60 W Peak    60 W RMS / 120 W Peak   80 W RMS / 160W Peak
 Built-In DSP  N/A  Y  Y  Sensitivity  86 dBSPL, @1 m, 1 W, 1 kHz  90 dBSPL, @1 m, 1 W, 1 kHz  90 dBSPL, @1 m, 1 W, 1 kHz
 WebGUI Control  N/A  Y  Y          70 V (2.5 W, 5 W, 10 W, 20 W)  70 V (7.5 W, 15 W, 30 W, 60 W) 70V(10W, 20W, 40W, 80W)
             Transformer Taps
 LAN Control  N/A  Y  Y             100 V (*, 5 W, 10 W, 20 W)  100 V (*, 15 W, 30 W, 60 W)  100V(*, 20W, 40W, 80W)
 Line Output  N/A  Y  Y  Compliance
 Rack Size  1/2U  1/2U  1/2U  Certification  CE, WEEE, RoHs  CE, WEEE, RoHs          CE, WEEE, RoHs
 Dante Compatibility  N/A  Y, with AP901  Y, with AP901
             Connectors
 MIC Input  N/A  Y, with AP902  Y, with AP902
             Audio Inputs           5.08 mm Euroblock Connector  5.08 mm Euroblock Connector  5.08 mm Euroblock Connector
 Control  RS-232  RS-232, LAN  RS-232, LAN
             Environmental

             Operating Temperature  0 – 40 °C                0 – 40 °C               0 – 40 °C
             Humidity               0 – 80 % RH, Non-Condensing  0 – 80 % RH, Non-Condensing  0 – 80 % RH, Non-Condensing
             Storage Temperature    -20 – 60 °C              -20 – 60 °C             -20 – 60 °C

             Physical Properties
             Weight                 2.20 kg                  3.70 kg                 5.70 kg
                                    UL94-V0 ABS Plastic Baffle  UL94-V0 ABS Plastic Baffle  UL94-V0 ABS Plastic Baffle
             Housing
                                    Zinc-coated Steel Backcan  Zinc-coated Steel Backcan  Zinc-coated Steel Backcan
             Dimensions (L x W x H)  21.80 x 21.80 x 13.00 cm  25.72 x 25.72 x 19.75 cm  30.9 x 30.9 x 24.8 cm
                                    White Speaker Grille     White Speaker Grille    White Speaker Grille
             Color                  (Paintable)              (Paintable)             (Paintable)
                                    White Speaker Baffle     White Speaker Baffle    White Speaker Baffle
             Cut-out Diameter       182 mm                   221 mm                  271 mm
             In-ceiling Clearance Height  125 mm             195 mm                  243 mm
             Carton Lot             2 pcs                    2 pcs                   2 pcs
                                    2x Euroblock Connectors; 2x   2x Euroblock Connectors; 2x   2x Euroblock Connectors; 2x
                                    Ceiling Reinforcement Kits; 2x   Ceiling Reinforcement Kits; 2x   Ceiling Reinforcement Kits; 2x
             Included Accessories
                                    Cutout Templates; 2 x Speaker   Cutout Templates; 2 x Speaker   Cutout Templates; 2 x Speaker
                                    Grilles                  Grilles                 Grilles
