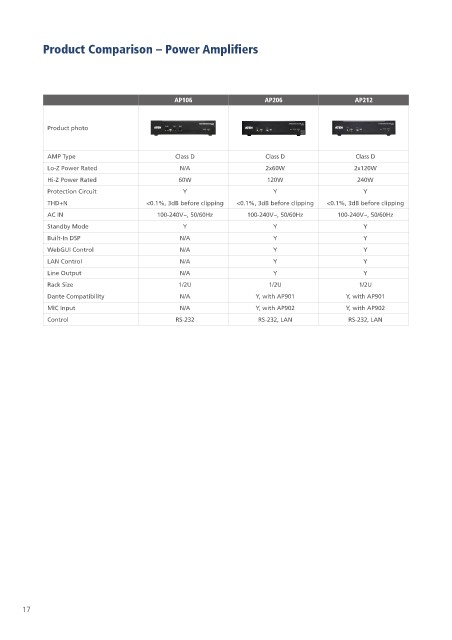

Product Comparison – Power Amplifiers                                                                                  Product Comparison – Speakers







                                               AP106                   AP206                  AP212                                                                 AS104                    AS106                   AS108


              Product photo                                                                                                          Product photo


                                                                                                                                    System Specification
              AMP Type                         Class D                 Class D                 Class D                                                     4" Paper Cone with Rubber   6.5" Paper Cone with Rubber   8" Paper Cone with Rubber
                                                                                                                                     LF Driver
              Lo-Z Power Rated                  N/A                    2x60W                  2x120W                                                       Suspension               Suspension              Suspension
              Hi-Z Power Rated                  60W                    120W                    240W                                  HF Driver             20 mm PEI Dome Tweeter   20 mm PEI Dome Tweeter  20 mm PEI Dome Tweeter
              Protection Circuit                 Y                       Y                       Y                                   Frequency Response    100 ~ 20 kHz (-10 dB)    80 ~20 kHz (-10 dB)     65 ~ 20 kHz (-10 dB)
              THD+N                     <0.1%, 3dB before clipping  <0.1%, 3dB before clipping  <0.1%, 3dB before clipping
                                                                                                                                     Distortion            <=5 %                    <=5 %                   <=5 %
              AC IN                       100-240V~, 50/60Hz      100-240V~, 50/60Hz      100-240V~, 50/60Hz
              Standby Mode                       Y                       Y                       Y                                   Rated Power           30 W RMS / 60 W Peak     60 W RMS / 120 W Peak   80 W RMS / 160W Peak
              Built-In DSP                      N/A                      Y                       Y                                   Sensitivity           86 dBSPL, @1 m, 1 W, 1 kHz  90 dBSPL, @1 m, 1 W, 1 kHz  90 dBSPL, @1 m, 1 W, 1 kHz
              WebGUI Control                    N/A                      Y                       Y                                                         70 V (2.5 W, 5 W, 10 W, 20 W)  70 V (7.5 W, 15 W, 30 W, 60 W) 70V(10W, 20W, 40W, 80W)
                                                                                                                                     Transformer Taps
              LAN Control                       N/A                      Y                       Y                                                         100 V (*, 5 W, 10 W, 20 W)  100 V (*, 15 W, 30 W, 60 W)  100V(*, 20W, 40W, 80W)
              Line Output                       N/A                      Y                       Y                                  Compliance
              Rack Size                         1/2U                    1/2U                    1/2U                                 Certification         CE, WEEE, RoHs           CE, WEEE, RoHs          CE, WEEE, RoHs
              Dante Compatibility               N/A                 Y, with AP901           Y, with AP901
                                                                                                                                    Connectors
              MIC Input                         N/A                 Y, with AP902           Y, with AP902
                                                                                                                                     Audio Inputs          5.08 mm Euroblock Connector  5.08 mm Euroblock Connector  5.08 mm Euroblock Connector
              Control                          RS-232                RS-232, LAN             RS-232, LAN
                                                                                                                                    Environmental

                                                                                                                                     Operating Temperature  0 – 40 °C               0 – 40 °C               0 – 40 °C
                                                                                                                                     Humidity              0 – 80 % RH, Non-Condensing  0 – 80 % RH, Non-Condensing  0 – 80 % RH, Non-Condensing
                                                                                                                                     Storage Temperature   -20 – 60 °C              -20 – 60 °C             -20 – 60 °C

                                                                                                                                    Physical Properties
                                                                                                                                     Weight                2.20 kg                  3.70 kg                 5.70 kg
                                                                                                                                                           UL94-V0 ABS Plastic Baffle  UL94-V0 ABS Plastic Baffle  UL94-V0 ABS Plastic Baffle
                                                                                                                                     Housing
                                                                                                                                                           Zinc-coated Steel Backcan  Zinc-coated Steel Backcan  Zinc-coated Steel Backcan
                                                                                                                                     Dimensions (L x W x H)  21.80 x 21.80 x 13.00 cm  25.72 x 25.72 x 19.75 cm  30.9 x 30.9 x 24.8 cm
                                                                                                                                                           White Speaker Grille     White Speaker Grille    White Speaker Grille
                                                                                                                                     Color                 (Paintable)              (Paintable)             (Paintable)
                                                                                                                                                           White Speaker Baffle     White Speaker Baffle    White Speaker Baffle
                                                                                                                                     Cut-out Diameter      182 mm                   221 mm                  271 mm
                                                                                                                                     In-ceiling Clearance Height  125 mm            195 mm                  243 mm
                                                                                                                                     Carton Lot            2 pcs                    2 pcs                   2 pcs
                                                                                                                                                           2x Euroblock Connectors; 2x   2x Euroblock Connectors; 2x   2x Euroblock Connectors; 2x
                                                                                                                                                           Ceiling Reinforcement Kits; 2x   Ceiling Reinforcement Kits; 2x   Ceiling Reinforcement Kits; 2x
                                                                                                                                     Included Accessories
                                                                                                                                                           Cutout Templates; 2 x Speaker   Cutout Templates; 2 x Speaker   Cutout Templates; 2 x Speaker
                                                                                                                                                           Grilles                  Grilles                 Grilles
