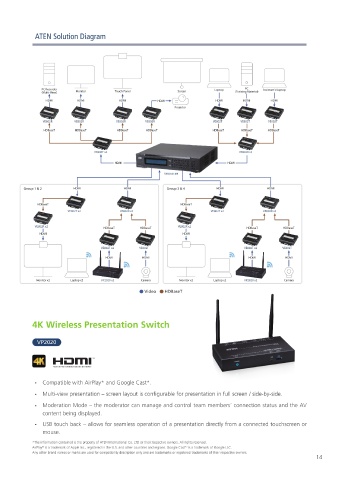

ATEN Solution Diagram

PC Recorder Laptop PC Assistant's Laptop
(Multi-View) Monitor Touch Panel Screen (Training Material)
Problem-based Learning Classroom (1) HDMI HDMI HDMI HDMI HDMI HDMI HDMI
Projector

VE802R VE802R VE802R VE802R VE802T VE802T VE802T
HDBaseT HDBaseT HDBaseT HDBaseT HDBaseT HDBaseT HDBaseT

VE802T x4 VE802R x3
HDMI HDMI

VM51616H

Group 1 & 2 HDMI HDMI Group 3 & 4 HDMI HDMI

HDBaseT HDBaseT
VE802T x2 VE802R x3 VE802T x2 VE802R x3

VE802R x2 HDBaseT HDBaseT VE802R x2 HDBaseT HDBaseT
HDMI HDMI

VE802T x2 VE802T VE802T x2 VE802T
HDMI HDMI HDMI HDMI

PBL classrooms enable groups of students to present their results in topic-specific discussions,
Background Monitor x2 Laptop x2 VP2020 x2 Camera Monitor x2 Laptop x2 VP2020 x2 Camera
and provide the teacher with the facility to observe and interact with each group at any time
during the class. Video HDBaseT

① Two-way switching of presentation content between teachers and students on the display.
Key 4K Wireless Presentation Switch
Requirements ② Camera is required to monitor and record each group of students' problem-solving process,
and to integrate multiple source images on the same screen.
VP2020
③ The teacher needs to monitor the interactive process of each group of students and view the
results of each group's presentation at the same time.

① Students can quickly share their presentations wirelessly via VP2020. Compatible with AirPlay* and Google Cast*.
ATEN •
Solution ② VM51616H is equipped with an array mode that integrates multiple source images on the • Multi-view presentation – screen layout is configurable for presentation in full screen / side-by-side.
same screen, allowing teachers to view all camera images and presentations at the same
time. • Moderation Mode – the moderator can manage and control team members’ connection status and the AV
content being displayed.
③ VP2020 can be integrated with multiple video and display device sources to meet the needs
of PBL classrooms. • USB touch back – allows for seamless operation of a presentation directly from a connected touchscreen or
mouse.
*The information contained is the property of ATEN International Co. LTD or their respective owners. All rights reserved.
AirPlay ® is a trademark of Apple Inc., registered in the U.S. and other countries and regions. Google Cast is a trademark of Google LLC.
TM
Any other brand names or marks are used for compatibility description only and are trademarks or registered trademarks of their respective owners.
