Page 21 - ATEN Product Series Guide - Presentation Switch Series Guide

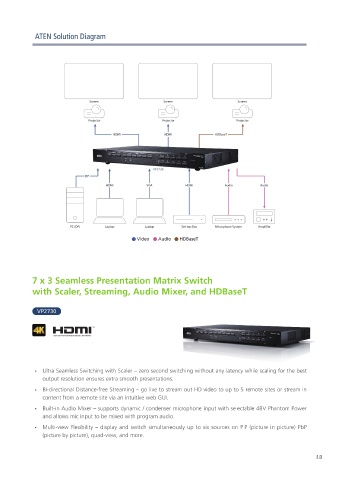

ATEN Solution Diagram

Lecture Hall Screen Screen Screen

Projector Projector Projector

HDMI HDMI HDBaseT

VP2730
DP
HDMI VGA HDMI Audio Audio

PC (DP) Laptop Laptop Set-top Box Microphone System Amplifier

Video Audio HDBaseT

Lecture halls are large scale classroom settings and are used primarily for university classes. The
Background 7 x 3 Seamless Presentation Matrix Switch
importance of a lecture hall is that, first and foremost, it operates as a centralized presentation
space to convey content information to as large an audience as possible all at once. with Scaler, Streaming, Audio Mixer, and HDBaseT

VP2730
① The display can be located at a maximum distance of 70 meters away, and there must be no
Key black screen but instead smooth switching of the signal source.
Requirements
② Audio needs to be extracted and connected to the venue audio system, and the sound
needs to be clearly audible.
③ Overlay the microphone input on top of other audio sources to enrich the presentation.

• Ultra Seamless Switching with Scaler – zero second switching without any latency while scaling for the best

① VP2730 supports long-range expansion via HDBaseT with zero-second seamless switching of output resolution ensures extra smooth presentations.
ATEN display content between sources.
Solution • Bi-directional Distance-free Streaming – go live to stream out HD video to up to 5 remote sites or stream in
② VP2730 has audio embedding and de-embedding capabilities and can be mixed with any content from a remote site via an intuitive web GUI.
external analog or digital audio source with microphone input.
• Built-in Audio Mixer – supports dynamic / condenser microphone input with selectable 48V Phantom Power
and allows mic input to be mixed with program audio.

• Multi-view Flexibility – display and switch simultaneously up to six sources on PiP (picture in picture) PbP
(picture by picture), quad-view, and more.
