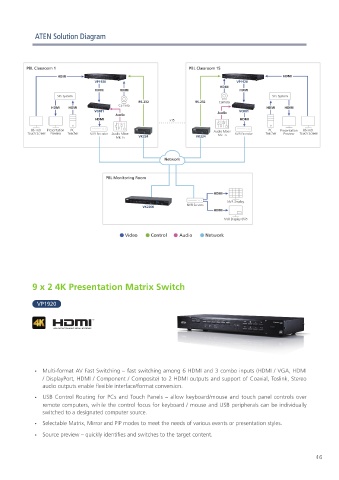

ATEN Solution Diagram

Problem-based Learning Classroom (2)

PBL classrooms provide a study and exam space for students and also allow teachers to interact
Background
with students in the classroom as well as to observe the classrooms from the PBL monitoring 9 x 2 4K Presentation Matrix Switch
control room.

VP1920

① Integrate and control presentation content, camera and mic input with NVR servers for
Key observation of the problem-solving process.
Requirements
② The hardware devices in the classroom need to be managed remotely.
③ Instructors need to view the presentation source signal and the camera source
simultaneously.

• Multi-format AV Fast Switching – fast switching among 6 HDMI and 3 combo inputs (HDMI / VGA, HDMI
① VP1920 integrates with the touch panel, teacher’s PC, and the presentation preview monitor / DisplayPort, HDMI / Component / Composite) to 2 HDMI outputs and support of Coaxial, Toslink, Stereo
ATEN via the system integrator’s in-classroom control system. audio outputs enable flexible interface/format conversion.
Solution
② VP1920 features PiP / PoP functionality to view the camera feed, and also control the devices • USB Control Routing for PCs and Touch Panels – allow keyboard/mouse and touch panel controls over
in the classroom remotely. remote computers, wihile the control focus for keyboard / mouse and USB peripherals can be individually
③ Bidirectional video signal transmission for group learning and camera integration and multi- switched to a designated computer source.
view array capabilities to enhance flexibility.
• Selectable Matrix, Mirror and PIP modes to meet the needs of various events or presentation styles.
• Source preview – quickly identifies and switches to the target content.
