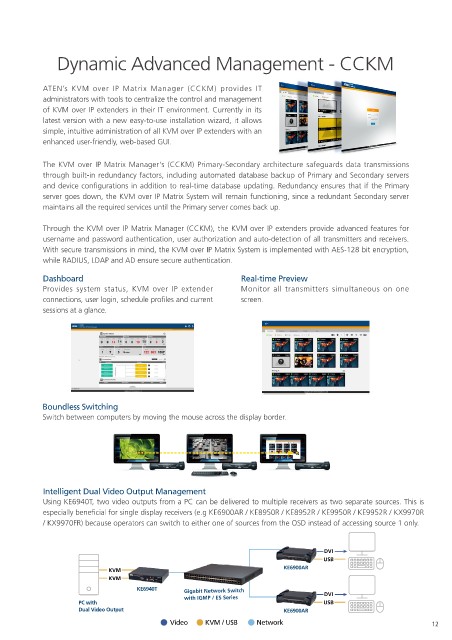

Dynamic Advanced Management - CCKM

ATEN’s KVM over IP Matrix Manager (CCKM) provides IT
administrators with tools to centralize the control and management
of KVM over IP extenders in their IT environment. Currently in its
latest version with a new easy-to-use installation wizard, it allows
simple, intuitive administration of all KVM over IP extenders with an
enhanced user-friendly, web-based GUI.

The KVM over IP Matrix Manager's (CCKM) Primary-Secondary architecture safeguards data transmissions
through built-in redundancy factors, including automated database backup of Primary and Secondary servers
and device configurations in addition to real-time database updating. Redundancy ensures that if the Primary
server goes down, the KVM over IP Matrix System will remain functioning, since a redundant Secondary server
maintains all the required services until the Primary server comes back up.

Through the KVM over IP Matrix Manager (CCKM), the KVM over IP extenders provide advanced features for
username and password authentication, user authorization and auto-detection of all transmitters and receivers.
With secure transmissions in mind, the KVM over IP Matrix System is implemented with AES-128 bit encryption,
while RADIUS, LDAP and AD ensure secure authentication.

Dashboard Real-time Preview
Provides system status, KVM over IP extender Monitor all transmitters simultaneous on one
connections, user login, schedule profiles and current screen.
sessions at a glance.

Boundless Switching
Switch between computers by moving the mouse across the display border.

Intelligent Dual Video Output Management
Using KE6940T, two video outputs from a PC can be delivered to multiple receivers as two separate sources. This is
especially beneficial for single display receivers (e.g KE6900AR / KE8950R / KE8952R / KE9950R / KE9952R / KX9970R
/ KX9970FR) because operators can switch to either one of sources from the OSD instead of accessing source 1 only.

DVI
USB
KE6900AR
KVM
KVM
KE6940T Gigabit Network Switch
with IGMP / ES Series DVI
PC with USB
Dual Video Output KE6900AR
Video KVM / USB Network 12
