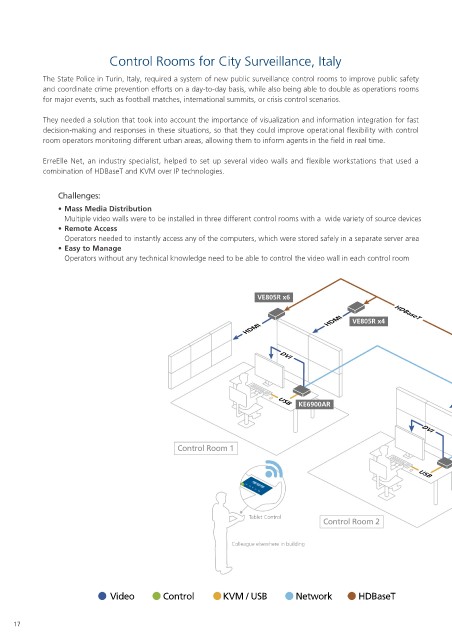

Control Rooms for City Surveillance, Italy

The State Police in Turin, Italy, required a system of new public surveillance control rooms to improve public safety
and coordinate crime prevention efforts on a day-to-day basis, while also being able to double as operations rooms
for major events, such as football matches, international summits, or crisis control scenarios.

They needed a solution that took into account the importance of visualization and information integration for fast
decision-making and responses in these situations, so that they could improve operational flexibility with control
room operators monitoring different urban areas, allowing them to inform agents in the field in real time.

ErreElle Net, an industry specialist, helped to set up several video walls and flexible workstations that used a
combination of HDBaseT and KVM over IP technologies.

Challenges:

• Mass Media Distribution
Multiple video walls were to be installed in three different control rooms with a wide variety of source devices
• Remote Access
Operators needed to instantly access any of the computers, which were stored safely in a separate server area
• Easy to Manage
Operators without any technical knowledge need to be able to control the video wall in each control room KVM
4 PC x21
4
5 5 CCKM Server
DVI
1
RS-232
VE805R x6 1 KE6940AT x22
2 2 VK2200 DVI
HDMI VE805R x4 3 VM3200 DVI
HDBaseT
HDMI
3

USB
DVI
VE805R x6
KE6940AR
HDMI Server Room
KE6900AR
USB
Network

DVI
Control Room 1

KE6900AR
USB
HDMI VE805R x16
DVI
Tablet Control
Control Room 2

Colleague elsewhere in building USB KE6900AR

Control Room 3
Video Control KVM / USB Network HDBaseT
