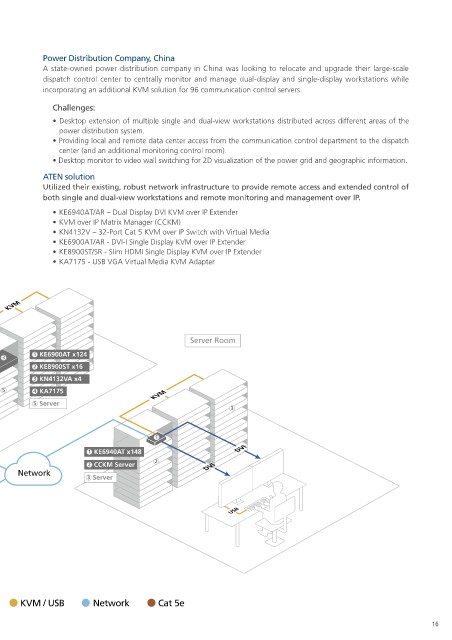

Power Distribution Company, China
A state-owned power distribution company in China was looking to relocate and upgrade their large-scale
dispatch control center to centrally monitor and manage dual-display and single-display workstations while
incorporating an additional KVM solution for 96 communication control servers.

Challenges:
• Desktop extension of multiple single and dual-view workstations distributed across different areas of the
power distribution system.
• Providing local and remote data center access from the communication control department to the dispatch
center (and an additional monitoring control room).
• Desktop monitor to video wall switching for 2D visualization of the power grid and geographic information.
ATEN solution
Utilized their existing, robust network infrastructure to provide remote access and extended control of
both single and dual-view workstations and remote monitoring and management over IP.
• KE6940AT/AR – Dual Display DVI KVM over IP Extender
• KVM over IP Matrix Manager (CCKM)
• KN4132V – 32-Port Cat 5 KVM over IP Switch with Virtual Media
• KE6900AT/AR - DVI-I Single Display KVM over IP Extender
• KE8900ST/SR - Slim HDMI Single Display KVM over IP Extender
• KA7175 - USB VGA Virtual Media KVM Adapter

KVM

Server Room
1
1 KE6900AT x124
3
Cat 5e
KE8900SR x16 4 KVM 2 2 KE8900ST x16
3 KN4132VA x4
5 4 KA7175 KVM
HDMI
5 Server
3
DVI

1

1 KE6940AT x148 DVI
KE6900AR x30 2 CCKM Server 2 DVI
USB
Network 3 Server
x30 DVI
DVI

CCKM USB

Control Room USB KE6940AR x85

x85

Video KVM / USB Network Cat 5e
