ATEN HDBaseT Installation Guide

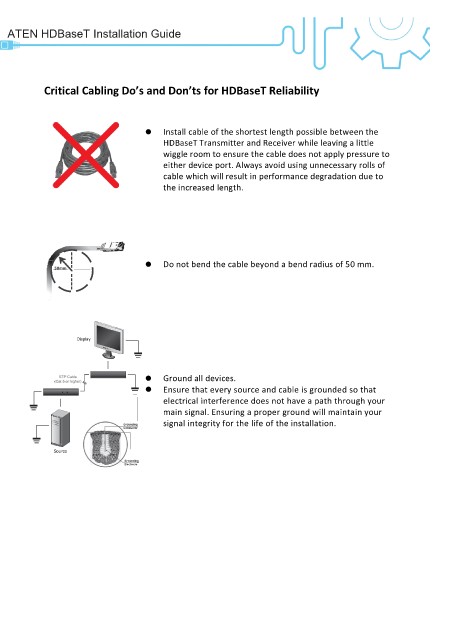

             Critical Cabling Do’s and Don’ts for HDBaseT Reliability



                                       ⚫  Install cable of the shortest length possible between the
                                            HDBaseT Transmitter and Receiver while leaving a little
                                            wiggle room to ensure the cable does not apply pressure to
                                            either device port. Always avoid using unnecessary rolls of
                                            cable which will result in performance degradation due to
                                            the increased length.







                                       ⚫  Do not bend the cable beyond a bend radius of 50 mm.
                50mm










                                       ⚫  Ground all devices.
                                       ⚫  Ensure that every source and cable is grounded so that
                                            electrical interference does not have a path through your
                                            main signal. Ensuring a proper ground will maintain your
                                            signal integrity for the life of the installation.
