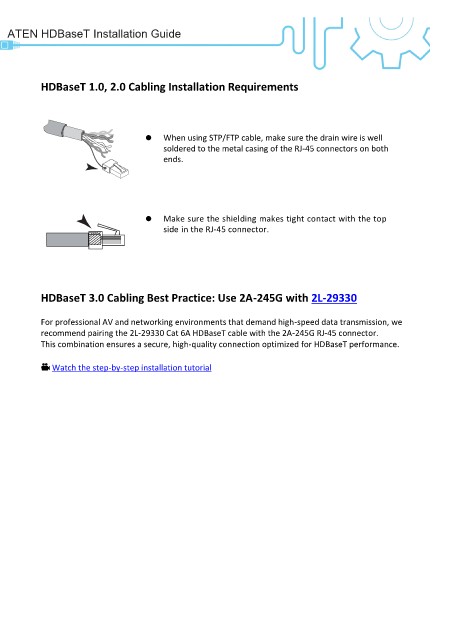

ATEN HDBaseT Installation Guide





            HDBaseT 1.0, 2.0 Cabling Installation Requirements





                                       ⚫  When using STP/FTP cable, make sure the drain wire is well
                                            soldered to the metal casing of the RJ-45 connectors on both
                                            ends.





                                       ⚫  Make sure the shielding makes tight contact with the top
                                            side in the RJ-45 connector.





            HDBaseT 3.0 Cabling Best Practice: Use 2A-245G with 2L-29330

            For professional AV and networking environments that demand high-speed data transmission, we
            recommend pairing the 2L-29330 Cat 6A HDBaseT cable with the 2A-245G RJ-45 connector.
            This combination ensures a secure, high-quality connection optimized for HDBaseT performance.

               Watch the step-by-step installation tutorial
