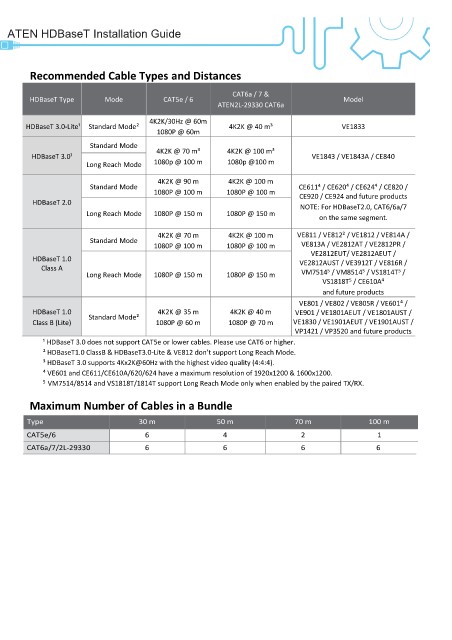

ATEN HDBaseT Installation Guide




         Recommended Cable Types and Distances


                                                              CAT6a / 7 &
         HDBaseT Type        Mode           CAT5e / 6                                       Model
                                                          ATEN2L-29330 CAT6a
                                        4K2K/30Hz @ 60m
         HDBaseT 3.0-Lite¹  Standard Mode²                   4K2K @ 40 m³                  VE1833
                                          1080P @ 60m
                         Standard Mode
                                          4K2K @ 70 m³       4K2K @ 100 m³
         HDBaseT 3.0¹                                                              VE1843 / VE1843A / CE840
                        Long Reach Mode   1080p @ 100 m      1080p @100 m

                                           4K2K @ 90 m       4K2K @ 100 m
                         Standard Mode                                          CE611⁴ / CE620⁴ / CE624⁴ / CE820 /
                                          1080P @ 100 m      1080P @ 100 m
                                                                                CE920 / CE924 and future products
          HDBaseT 2.0
                                                                                NOTE: For HDBaseT2.0, CAT6/6a/7
                        Long Reach Mode   1080P @ 150 m      1080P @ 150 m
                                                                                     on the same segment.
                                           4K2K @ 70 m       4K2K @ 100 m      VE811 / VE812² / VE1812 / VE814A /
                         Standard Mode
                                          1080P @ 100 m      1080P @ 100 m      VE813A / VE2812AT / VE2812PR /
                                                                                   VE2812EUT/ VE2812AEUT /
          HDBaseT 1.0
                                                                                VE2812AUST / VE3912T / VE816R /
            Class A                                                                    5         5        5
                        Long Reach Mode   1080P @ 150 m      1080P @ 150 m      VM7514  / VM8514  / VS1814T  /
                                                                                      VS1818T  / CE610A⁴
                                                                                             5
                                                                                      and future products
                                                                                VE801 / VE802 / VE805R / VE601⁴ /
          HDBaseT 1.0                      4K2K @ 35 m        4K2K @ 40 m      VE901 / VE1801AEUT / VE1801AUST /
                        Standard Mode²
          Class B (Lite)                  1080P @ 60 m       1080P @ 70 m     VE1830 / VE1901AEUT / VE1901AUST /
                                                                               VP1421 / VP3520 and future products
            ¹ HDBaseT 3.0 does not support CAT5e or lower cables. Please use CAT6 or higher.
            ² HDBaseT1.0 ClassB & HDBaseT3.0-Lite & VE812 don’t support Long Reach Mode.
            ³ HDBaseT 3.0 supports 4Kx2K@60Hz with the highest video quality (4:4:4).
            ⁴ VE601 and CE611/CE610A/620/624 have a maximum resolution of 1920x1200 & 1600x1200.
            5   VM7514/8514 and VS1818T/1814T support Long Reach Mode only when enabled by the paired TX/RX.

           Maximum Number of Cables in a Bundle

        Type                          30 m                50 m                 70 m               100 m
        CAT5e/6                        6                    4                   2                   1
        CAT6a/7/2L-29330               6                    6                   6                   6
