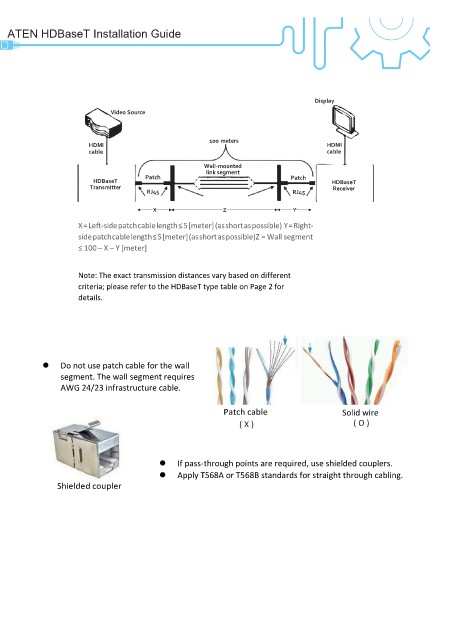

ATEN HDBaseT Installation Guide







                                                                                    Display
                              Video Source


                                                        100 meters
                        HDMI                                                           HDMI
                        cable                                                          cable
                                                       Wall-mounted

                                                       link segment

                          HDBaseT      Patch                                  Patch       HDBaseT


                         Transmitter                                                       Receiver
                                        RJ45                                  RJ45

                                         X                  Z                 Y

                      X = Left-side patch cable length ≤ 5 [meter] (as short as possible) Y = Right-
                      side patch cable length ≤ 5 [meter] (as short as possible) Z = Wall segment
                      ≤ 100 – X – Y [meter]


                      Note: The exact transmission distances vary based on different
                      criteria; please refer to the HDBaseT type table on Page 2 for
                      details.






            ⚫  Do not use patch cable for the wall
                 segment. The wall segment requires
                 AWG 24/23 infrastructure cable.


                                                            Patch cable                    Solid wire
                                                                ( X )                         ( O )



                                           ⚫  If pass-through points are required, use shielded couplers.
                                           ⚫  Apply T568A or T568B standards for straight through cabling.
                Shielded coupler
   1   2   3   4   5   6   7   8
