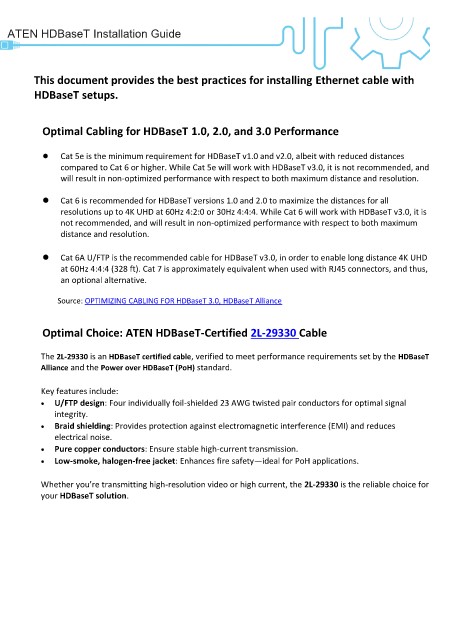

ATEN HDBaseT Installation Guide




          This document provides the best practices for installing Ethernet cable with

          HDBaseT setups.



            Optimal Cabling for HDBaseT 1.0, 2.0, and 3.0 Performance

            ⚫    Cat 5e is the minimum requirement for HDBaseT v1.0 and v2.0, albeit with reduced distances
                 compared to Cat 6 or higher. While Cat 5e will work with HDBaseT v3.0, it is not recommended, and
                 will result in non-optimized performance with respect to both maximum distance and resolution.

            ⚫  Cat 6 is recommended for HDBaseT versions 1.0 and 2.0 to maximize the distances for all
                 resolutions up to 4K UHD at 60Hz 4:2:0 or 30Hz 4:4:4. While Cat 6 will work with HDBaseT v3.0, it is
                 not recommended, and will result in non-optimized performance with respect to both maximum
                 distance and resolution.

            ⚫  Cat 6A U/FTP is the recommended cable for HDBaseT v3.0, in order to enable long distance 4K UHD
                 at 60Hz 4:4:4 (328 ft). Cat 7 is approximately equivalent when used with RJ45 connectors, and thus,
                 an optional alternative.

                Source: OPTIMIZING CABLING FOR HDBaseT 3.0, HDBaseT Alliance



            Optimal Choice: ATEN HDBaseT-Certified 2L-29330 Cable


            The 2L-29330 is an HDBaseT certified cable, verified to meet performance requirements set by the HDBaseT
            Alliance and the Power over HDBaseT (PoH) standard.

            Key features include:
            •  U/FTP design: Four individually foil-shielded 23 AWG twisted pair conductors for optimal signal
               integrity.
            •  Braid shielding: Provides protection against electromagnetic interference (EMI) and reduces
               electrical noise.
            •  Pure copper conductors: Ensure stable high-current transmission.
            •  Low-smoke, halogen-free jacket: Enhances fire safety—ideal for PoH applications.

            Whether you’re transmitting high-resolution video or high current, the 2L-29330 is the reliable choice for
            your HDBaseT solution.
