Page 8 - ATEN Amplifier Speaker Series
P. 8

ATEN Solution Diagram

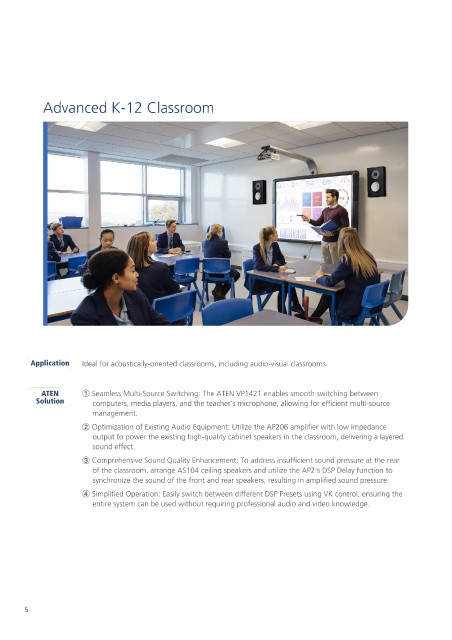

            Advanced K-12 Classroom


































                                                                                                                                   2x60W Power Amplifier with DSP

                                                                                                                                      AP206

                                                                                                                                                                          •   2x60W Class D Power Amplifier with integrated professional DSP.
         Application   Ideal for acoustically-oriented classrooms, including audio-visual classrooms.
                                                                                                                                                                          •   Intuitive Web GUI simplifies DSP configuration, no audio
                                                                                                                                                                             expertise required.
            ATEN       ① Seamless Multi-Source Switching: The ATEN VP1421 enables smooth switching between                                                                •   Power supply with PFC for enhanced efficiency, compatible with
          Solution       computers, media players, and the teacher's microphone, allowing for efficient multi-source                                                         ATEN VK control units for energy-saving and automation.
                         management.
                                                                                                                                                                          •   Flexible expansion slot design for versatile application scenarios.
                       ② Optimization of Existing Audio Equipment: Utilize the AP206 amplifier with low impedance
                         output to power the existing high-quality cabinet speakers in the classroom, delivering a layered
                         sound effect.
                       ③ Comprehensive Sound Quality Enhancement: To address insufficient sound pressure at the rear
                         of the classroom, arrange AS104 ceiling speakers and utilize the AP2's DSP Delay function to              4" Coaxial Ceiling Loudspeaker
                         synchronize the sound of the front and rear speakers, resulting in amplified sound pressure.
                                                                                                                                      AS104
                       ④ Simplified Operation: Easily switch between different DSP Presets using VK control, ensuring the
                         entire system can be used without requiring professional audio and video knowledge.                                                              •   Coaxial design using premium components: 4” high-output
                                                                                                                                                                             driver and a 20 mm dome tweeter.

                                                                                                                                                                          •   100 – 20 kHz bandwidth for consistent, full-range space
                                                                                                                                                                             coverage, reducing speaker count.
                                                                                                                                                                          •   Switchable between 8 Ω low-impedance speaker or a 70V/100V
                                                                                                                                                                             distributed system.
                                                                                                                                                                          •   Effortless installation with magnetic grille, dog leg mount, and
                                                                                                                                                                             cutout template.


       5                                                                                                                                                                                                                                6
