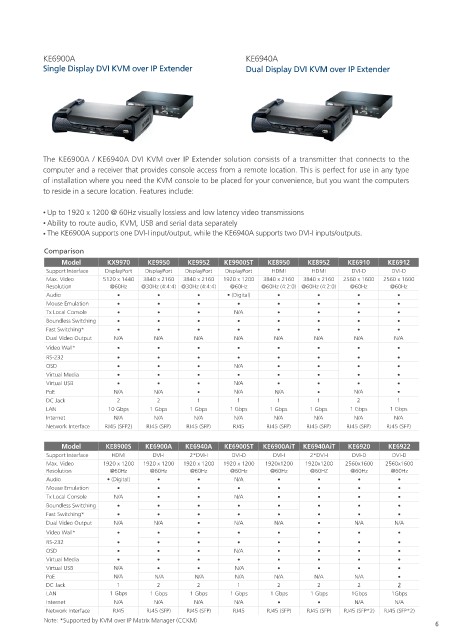

Page 9 - ATEN Product Series Guide - KVM over IP Matrix System Solutions

KE6900A KE6940A
Single Display DVI KVM over IP Extender Dual Display DVI KVM over IP Extender

The KE6900A / KE6940A DVI KVM over IP Extender solution consists of a transmitter that connects to the
computer and a receiver that provides console access from a remote location. This is perfect for use in any type
of installation where you need the KVM console to be placed for your convenience, but you want the computers
to reside in a secure location. Features include:

• Up to 1920 x 1200 @ 60Hz visually lossless and low latency video transmissions
• Ability to route audio, KVM, USB and serial data separately
• The KE6900A supports one DVI-I input/output, while the KE6940A supports two DVI-I inputs/outputs.

Comparison
Model KX9970 KE9950 KE9952 KE9900ST KE8950 KE8952 KE6910 KE6912
Support Interface DisplayPort DisplayPort DisplayPort DisplayPort HDMI HDMI DVI-D DVI-D
Max. Video 5120 x 1440 3840 x 2160 3840 x 2160 1920 x 1200 3840 x 2160 3840 x 2160 2560 x 1600 2560 x 1600
Resolution @60Hz @30Hz (4:4:4) @30Hz (4:4:4) @60Hz @60Hz (4:2:0) @60Hz (4:2:0) @60Hz @60Hz
Audio • • • • (Digital) • • • •
Mouse Emulation • • • • • • • •
Tx Local Console • • • N/A • • • •
Boundless Switching • • • • • • • •
Fast Switching* • • • • • • • •
Dual Video Output N/A N/A N/A N/A N/A N/A N/A N/A
Video Wall* • • • • • • • •
RS-232 • • • • • • • •
OSD • • • N/A • • • •
Virtual Media • • • • • • • •
Virtual USB • • • N/A • • • •
PoE N/A N/A • N/A N/A • N/A •
DC Jack 2 2 1 1 1 1 2 1
LAN 10 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps
Internet N/A N/A N/A N/A N/A N/A N/A N/A
Network Interface RJ45 (SFP2) RJ45 (SFP) RJ45 (SFP) RJ45 RJ45 (SFP) RJ45 (SFP) RJ45 (SFP) RJ45 (SFP)

Model KE8900S KE6900A KE6940A KE6900ST KE6900AiT KE6940AiT KE6920 KE6922
Support Interface HDMI DVI-I 2*DVI-I DVI-D DVI-I 2*DVI-I DVI-D DVI-D
Max. Video 1920 x 1200 1920 x 1200 1920 x 1200 1920 x 1200 1920x1200 1920x1200 2560x1600 2560x1600
Resolution @60Hz @60Hz @60Hz @60Hz @60Hz @60HZ @60Hz @60Hz
Audio • (Digital) • • N/A • • • •
Mouse Emulation • • • • • • • •
Tx Local Console N/A • • N/A • • • •
Boundless Switching • • • • • • • •
Fast Switching* • • • • • • • •
Dual Video Output N/A N/A • N/A N/A • N/A N/A
Video Wall* • • • • • • • •
RS-232 • • • • • • • •
OSD • • • N/A • • • •
Virtual Media • • • • • • • •
Virtual USB N/A • • N/A • • • •
PoE N/A N/A N/A N/A N/A N/A N/A •
DC Jack 1 2 2 1 2 2 2 2
LAN 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1Gbps 1Gbps
Internet N/A N/A N/A N/A • • N/A N/A
Network Interface RJ45 RJ45 (SFP) RJ45 (SFP) RJ45 RJ45 (SFP) RJ45 (SFP) RJ45 (SFP*2) RJ45 (SFP*2)
Note: *Supported by KVM over IP Matrix Manager (CCKM)
