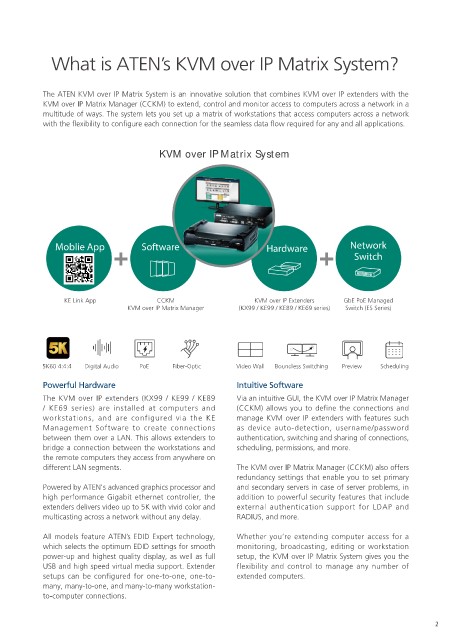

What is ATEN’s KVM over IP Matrix System?

The ATEN KVM over IP Matrix System is an innovative solution that combines KVM over IP extenders with the
KVM over IP Matrix Manager (CCKM) to extend, control and monitor access to computers across a network in a
multitude of ways. The system lets you set up a matrix of workstations that access computers across a network
with the flexibility to configure each connection for the seamless data flow required for any and all applications.

KVM over IP Matrix System

Moblie App Software Hardware Network
Switch

KE Link App CCKM KVM over IP Extenders GbE PoE Managed
KVM over IP Matrix Manager (KX99 / KE99 / KE89 / KE69 series) Switch (ES Series)

5K60 4:4:4 Digital Audio PoE Fiber-Optic Video Wall Boundless Switching Preview Scheduling
Powerful Hardware Intuitive Software

The KVM over IP extenders (KX99 / KE99 / KE89 Via an intuitive GUI, the KVM over IP Matrix Manager
/ KE69 series) are installed at computers and (CCKM) allows you to define the connections and
workstations, and are configured via the KE manage KVM over IP extenders with features such
Management Software to create connections as device auto-detection, username/password
between them over a LAN. This allows extenders to authentication, switching and sharing of connections,
bridge a connection between the workstations and scheduling, permissions, and more.
the remote computers they access from anywhere on
different LAN segments. The KVM over IP Matrix Manager (CCKM) also offers
redundancy settings that enable you to set primary
Powered by ATEN's advanced graphics processor and and secondary servers in case of server problems, in
high performance Gigabit ethernet controller, the addition to powerful security features that include
extenders delivers video up to 5K with vivid color and external authentication support for LDAP and
multicasting across a network without any delay. RADIUS, and more.

All models feature ATEN’s EDID Expert technology, Whether you’re extending computer access for a
which selects the optimum EDID settings for smooth monitoring, broadcasting, editing or workstation
power-up and highest quality display, as well as full setup, the KVM over IP Matrix System gives you the
USB and high speed virtual media support. Extender flexibility and control to manage any number of
setups can be configured for one-to-one, one-to- extended computers.
many, many-to-one, and many-to-many workstation-
to-computer connections.
