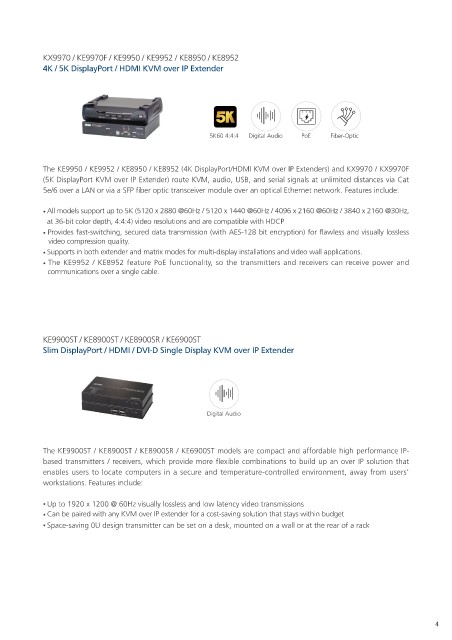

KX9970 / KE9970F / KE9950 / KE9952 / KE8950 / KE8952
4K / 5K DisplayPort / HDMI KVM over IP Extender

5K60 4:4:4 Digital Audio PoE Fiber-Optic

The KE9950 / KE9952 / KE8950 / KE8952 (4K DisplayPort/HDMI KVM over IP Extenders) and KX9970 / KX9970F
(5K DisplayPort KVM over IP Extender) route KVM, audio, USB, and serial signals at unlimited distances via Cat
5e/6 over a LAN or via a SFP fiber optic transceiver module over an optical Ethernet network. Features include:

• All models support up to 5K (5120 x 2880 @60Hz / 5120 x 1440 @60Hz / 4096 x 2160 @60Hz / 3840 x 2160 @30Hz,
at 36-bit color depth, 4:4:4) video resolutions and are compatible with HDCP
• Provides fast-switching, secured data transmission (with AES-128 bit encryption) for flawless and visually lossless
video compression quality.
• Supports in both extender and matrix modes for multi-display installations and video wall applications.
• The KE9952 / KE8952 feature PoE functionality, so the transmitters and receivers can receive power and
communications over a single cable.

KE9900ST / KE8900ST / KE8900SR / KE6900ST
Slim DisplayPort / HDMI / DVI-D Single Display KVM over IP Extender

Digital Audio

The KE9900ST / KE8900ST / KE8900SR / KE6900ST models are compact and affordable high performance IP-
based transmitters / receivers, which provide more flexible combinations to build up an over IP solution that
enables users to locate computers in a secure and temperature-controlled environment, away from users’
workstations. Features include:

• Up to 1920 x 1200 @ 60Hz visually lossless and low latency video transmissions
• Can be paired with any KVM over IP extender for a cost-saving solution that stays within budget
• Space-saving 0U design transmitter can be set on a desk, mounted on a wall or at the rear of a rack
