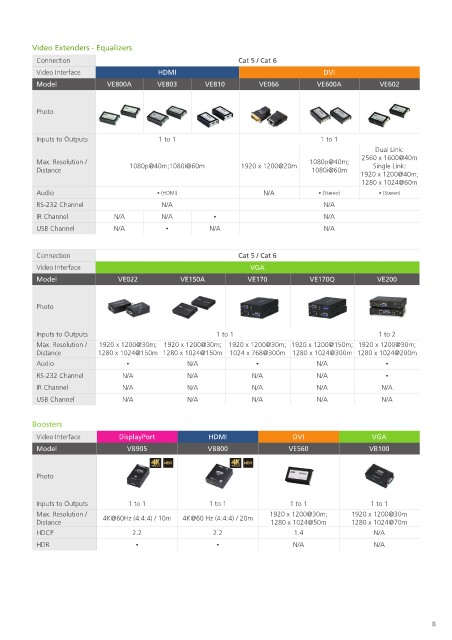

Video Extenders - Equalizers
Connection Cat 5 / Cat 6
Video Interface HDMI DVI
Model VE800A VE803 VE810 VE066 VE600A VE602


Inputs to Outputs 1 to 1 1 to 1
Dual Link:
2560 x 1600@40m
Max. Resolution / 1080p@40m;1080i@60m 1920 x 1200@20m 1080p@40m; Single Link:
Distance 1080i@60m
1920 x 1200@40m;
1280 x 1024@60m
Audio • (HDMI) N/A • (Stereo) • (Stereo)
RS-232 Channel N/A N/A
IR Channel N/A N/A • N/A
USB Channel N/A • N/A N/A

Connection Cat 5 / Cat 6
Video Interface VGA
Model VE022 VE150A VE170 VE170Q VE200


Inputs to Outputs 1 to 1 1 to 2
Max. Resolution / 1920 x 1200@30m; 1920 x 1200@30m; 1920 x 1200@30m; 1920 x 1200@150m; 1920 x 1200@30m;
Distance 1280 x 1024@150m 1280 x 1024@150m 1024 x 768@300m 1280 x 1024@300m 1280 x 1024@200m
Audio • N/A • N/A •
RS-232 Channel N/A N/A N/A N/A •
IR Channel N/A N/A N/A N/A N/A
USB Channel N/A N/A N/A N/A N/A

Boosters
Video Interface DisplayPort HDMI DVI VGA
Model VB905 VB800 VE560 VB100


Inputs to Outputs 1 to 1 1 to 1 1 to 1 1 to 1
Max. Resolution / 4K@60Hz (4:4:4) / 10m 4K@60 Hz (4:4:4) / 20m 1920 x 1200@30m; 1920 x 1200@30m
Distance 1280 x 1024@50m 1280 x 1024@70m
HDCP 2.2 2.2 1.4 N/A
HDR • • N/A N/A
