P. 10

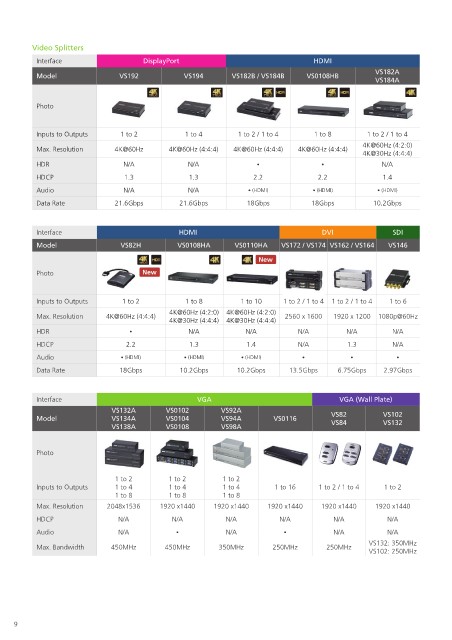

Video Splitters
Interface DisplayPort HDMI
VS182A
Model VS192 VS194 VS182B / VS184B VS0108HB
VS184A
Inputs to Outputs 1 to 2 1 to 4 1 to 2 / 1 to 4 1 to 8 1 to 2 / 1 to 4
4K@60Hz (4:2:0)
Max. Resolution 4K@60Hz 4K@60Hz (4:4:4) 4K@60Hz (4:4:4) 4K@60Hz (4:4:4)
4K@30Hz (4:4:4)
HDR N/A N/A • • N/A
HDCP 1.3 1.3 2.2 2.2 1.4
Audio N/A N/A • (HDMI) • (HDMI) • (HDMI)
Data Rate 21.6Gbps 21.6Gbps 18Gbps 18Gbps 10.2Gbps
Interface HDMI DVI SDI
Model VS82H VS0108HA VS0110HA VS172 / VS174 VS162 / VS164 VS146
Inputs to Outputs 1 to 2 1 to 8 1 to 10 1 to 2 / 1 to 4 1 to 2 / 1 to 4 1 to 6
4K@60Hz (4:2:0) 4K@60Hz (4:2:0)
Max. Resolution 4K@60Hz (4:4:4) 2560 x 1600 1920 x 1200 1080p@60Hz
4K@30Hz (4:4:4) 4K@30Hz (4:4:4)
HDR • N/A N/A N/A N/A N/A
HDCP 2.2 1.3 1.4 N/A 1.3 N/A
Audio • (HDMI) • (HDMI) • (HDMI) • • •
Data Rate 18Gbps 10.2Gbps 10.2Gbps 13.5Gbps 6.75Gbps 2.97Gbps
Interface VGA VGA (Wall Plate)
VS132A VS0102 VS92A
Model VS134A VS0104 VS94A VS0116 VS82 VS102
VS84
VS132
VS138A VS0108 VS98A
1 to 2 1 to 2 1 to 2
Inputs to Outputs 1 to 4 1 to 4 1 to 4 1 to 16 1 to 2 / 1 to 4 1 to 2
1 to 8 1 to 8 1 to 8
Max. Resolution 2048x1536 1920 x1440 1920 x1440 1920 x1440 1920 x1440 1920 x1440
HDCP N/A N/A N/A N/A N/A N/A
Audio N/A • N/A • N/A N/A
VS132: 350MHz
Max. Bandwidth 450MHz 450MHz 350MHz 250MHz 250MHz
VS102: 250MHz
