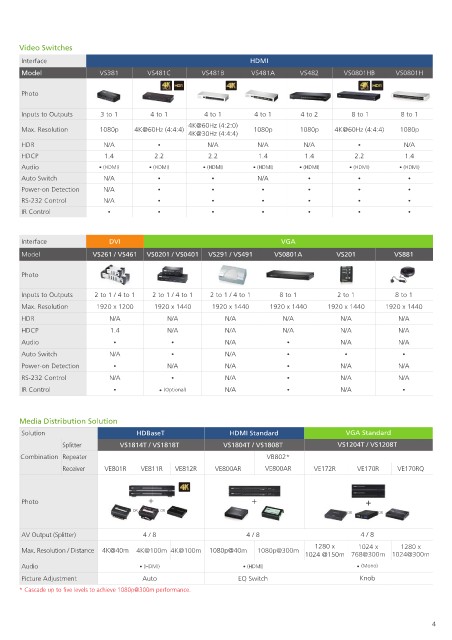

Page 5 - ATEN Product Series Guide - Pro AV Selection Guide

Video Switches
Interface HDMI
Model VS381 VS481C VS481B VS481A VS482 VS0801HB VS0801H


Inputs to Outputs 3 to 1 4 to 1 4 to 1 4 to 1 4 to 2 8 to 1 8 to 1
4K@60Hz (4:2:0)
Max. Resolution 1080p 4K@60Hz (4:4:4) 1080p 1080p 4K@60Hz (4:4:4) 1080p
4K@30Hz (4:4:4)
HDR N/A • N/A N/A N/A • N/A
HDCP 1.4 2.2 2.2 1.4 1.4 2.2 1.4
Audio • (HDMI) • (HDMI) • (HDMI) • (HDMI) • (HDMI) • (HDMI) • (HDMI)
Auto Switch N/A • • N/A • • •
Power-on Detection N/A • • • • • •
RS-232 Control N/A • • • • • •
IR Control • • • • • • •

Interface DVI VGA
Model VS261 / VS461 VS0201 / VS0401 VS291 / VS491 VS0801A VS201 VS881


Inputs to Outputs 2 to 1 / 4 to 1 2 to 1 / 4 to 1 2 to 1 / 4 to 1 8 to 1 2 to 1 8 to 1
Max. Resolution 1920 x 1200 1920 x 1440 1920 x 1440 1920 x 1440 1920 x 1440 1920 x 1440
HDR N/A N/A N/A N/A N/A N/A
HDCP 1.4 N/A N/A N/A N/A N/A
Audio • • N/A • N/A N/A
Auto Switch N/A • N/A • • •
Power-on Detection • N/A N/A • N/A N/A
RS-232 Control N/A • N/A • N/A N/A
IR Control • • (Optional) N/A • N/A •

Media Distribution Solution

Solution HDBaseT HDMI Standard VGA Standard
Splitter VS1814T / VS1818T VS1804T / VS1808T VS1204T / VS1208T
Combination Repeater VB802*
Receiver VE801R VE811R VE812R VE800AR VE800AR VE172R VE170R VE170RQ

Photo + + +
OR OR
OR OR
AV Output (Splitter) 4 / 8 4 / 8 4 / 8
1280 x 1024 x 1280 x
Max. Resolution / Distance 4K@40m 4K@100m 4K@100m 1080p@40m 1080p@300m
1024 @150m 768@300m 1024@300m
Audio • (HDMI) • (HDMI) • (Mono)
Picture Adjustment Auto EQ Switch Knob
* Cascade up to fi ve levels to achieve 1080p@300m performance.
