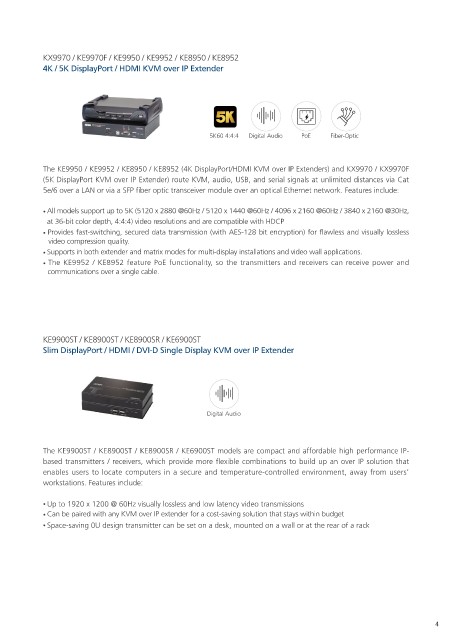

KX9970 / KX9980 / KE9950 / KE9952 / KE8950 / KE8952
            4K / 5K DisplayPort / HDMI KVM over IP Extender










                                                        5K60 4:4:4  Digital Audio  PoE  Fiber-Optic



            The KE9950 / KE9952 / KE8950 / KE8952 (4K DisplayPort/HDMI KVM over IP Extenders) and KX9970/
            KX9980(5K DisplayPort KVM over IP Extender) route KVM, audio, USB, and serial signals at unlimited distances
            via Cat 5e/6/7 over a LAN or via a SFP fiber optic transceiver module over an optical Ethernet network. Features
            include:


            • All models support up to 5K (5120 x 2880 @60Hz / 5120 x 1440 @60Hz / 4096 x 2160 @60Hz / 3840 x 2160 @30Hz,
              at 36-bit color depth, 4:4:4) video resolutions and are compatible with HDCP
            • Provides fast-switching, secured data transmission (with AES 128-bit/256-bit encryption) for flawless and visually
              lossless video compression quality.
            • Supports in both extender and matrix modes for multi-display installations and video wall applications.
            • The KE9952 / KE8952 feature PoE functionality, so the transmitters and receivers can receive power and
              communications over a single cable.







            KE8980MR
            4K Quad-Display KVM over IP Multiview Receiver







                                                                     x16
                                                         Quad      Multiview  Physical + Virtual  Ultra-Low
                                                         Displays              Servers     Latency

            The ATEN KE8980MR is a high-performance KVM over IP receiver designed for mission-critical control room
            applications. It can be configured to manage up to 16 servers in separate, resizable windows that can be
            freely positioned or overlapped across four displays. Additionally, in Operation mode, up to 108 servers can
            be monitored simultaneously in real time for optimal situational awareness. The receiver provides detailed,
            simultaneous visualization and control, optimizing situational response and operator efficiency in complex
            environments.


            • Supports 2 HDMI and 2 DisplayPort outputs, each up to 4096x2160@60Hz resolution
            • Multiview Control with Boundless Switching MX™
            • Centralized Monitoring via Panel Array™
            • Supports VMware, Microsoft, and Citrix via RDP/VNC, with seamless integration into CCKM
