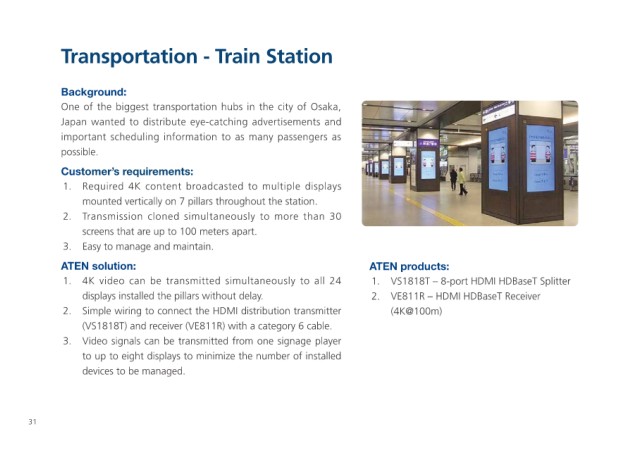

Transportation - Train Station
Background:
One of the biggest transportation hubs in the city of Osaka,
Japan wanted to distribute eye-catching advertisements and
important scheduling information to as many passengers as
possible.
Customer’s requirements:
1. Required 4K content broadcasted to multiple displays
mounted vertically on 7 pillars throughout the station.
2. Transmission cloned simultaneously to more than 30
screens that are up to 100 meters apart.
3. Easy to manage and maintain.
ATEN solution: ATEN products:
1. 4K video can be transmitted simultaneously to all 24 1. VS1818T – 8-port HDMI HDBaseT Splitter
displays installed the pillars without delay. 2. VE811R – HDMI HDBaseT Receiver
2. Simple wiring to connect the HDMI distribution transmitter (4K@100m)
(VS1818T) and receiver (VE811R) with a category 6 cable.
3. Video signals can be transmitted from one signage player
to up to eight displays to minimize the number of installed
devices to be managed.
