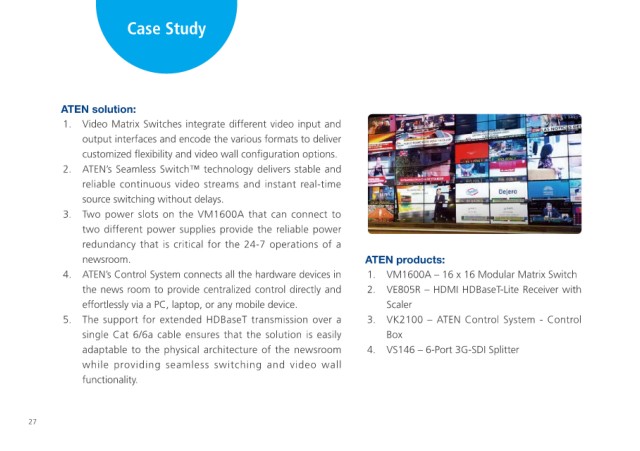

Case Study

ATEN solution:
1. Video Matrix Switches integrate different video input and
output interfaces and encode the various formats to deliver
customized flexibility and video wall configuration options.
2. ATEN’s Seamless Switch™ technology delivers stable and
reliable continuous video streams and instant real-time
source switching without delays.
3. Two power slots on the VM1600A that can connect to
two different power supplies provide the reliable power
redundancy that is critical for the 24-7 operations of a
newsroom. ATEN products:
4. ATEN’s Control System connects all the hardware devices in 1. VM1600A – 16 x 16 Modular Matrix Switch
the news room to provide centralized control directly and 2. VE805R – HDMI HDBaseT-Lite Receiver with
effortlessly via a PC, laptop, or any mobile device. Scaler
5. The support for extended HDBaseT transmission over a 3. VK2100 – ATEN Control System - Control
single Cat 6/6a cable ensures that the solution is easily Box
adaptable to the physical architecture of the newsroom 4. VS146 – 6-Port 3G-SDI Splitter
while providing seamless switching and video wall
functionality.
