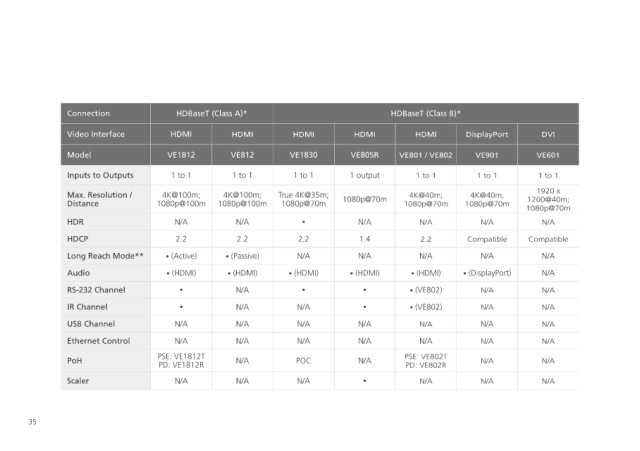

Page 38 - ATEN HDBaseT Solutions

Connection HDBaseT (Class A)* HDBaseT (Class B)*
Video Interface HDMI HDMI HDMI HDMI HDMI DisplayPort DVI

Model VE1812 VE812 VE1830 VE805R VE801 / VE802 VE901 VE601
Inputs to Outputs 1 to 1 1 to 1 1 to 1 1 output 1 to 1 1 to 1 1 to 1
1920 x
Max. Resolution / 4K@100m; 4K@100m; True 4K@35m; 1080p@70m 4K@40m; 4K@40m; 1200@40m;
Distance 1080p@100m 1080p@100m 1080p@70m 1080p@70m 1080p@70m
1080p@70m
HDR N/A N/A • N/A N/A N/A N/A
HDCP 2.2 2.2 2.2 1.4 2.2 Compatible Compatible
Long Reach Mode** • (Active) • (Passive) N/A N/A N/A N/A N/A
Audio • (HDMI) • (HDMI) • (HDMI) • (HDMI) • (HDMI) • (DisplayPort) N/A
RS-232 Channel • N/A • • • (VE802) N/A N/A
IR Channel • N/A N/A • • (VE802) N/A N/A
USB Channel N/A N/A N/A N/A N/A N/A N/A
Ethernet Control N/A N/A N/A N/A N/A N/A N/A
PSE: VE1812T PSE: VE802T
PoH N/A POC N/A N/A N/A
PD: VE1812R PD: VE802R
Scaler N/A N/A N/A • N/A N/A N/A

35
