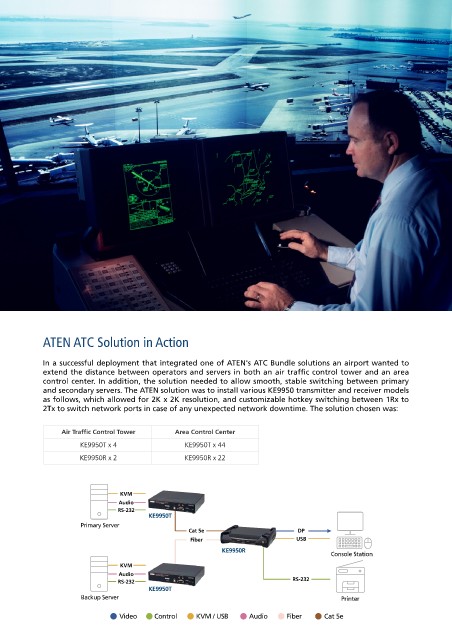

ATEN ATC Solution in Action

In a successful deployment that integrated one of ATEN's ATC Bundle solutions an airport wanted to
extend the distance between operators and servers in both an air traffic control tower and an area
control center. In addition, the solution needed to allow smooth, stable switching between primary
and secondary servers. The ATEN solution was to install various KE9950 transmitter and receiver models
as follows, which allowed for 2K x 2K resolution, and customizable hotkey switching between 1Rx to
2Tx to switch network ports in case of any unexpected network downtime. The solution chosen was:

Air Traffic Control Tower Area Control Center
KE9950T x 4 KE9950T x 44

KE9950R x 2 KE9950R x 22

KVM
Audio
RS-232
KE9950T
Primary Server
Cat 5e DP
Fiber USB
KE9950R
Console Station
KVM
Audio
RS-232 RS-232
KE9950T
Backup Server Printer

Video Control KVM / USB Audio Fiber Cat 5e
