P. 4

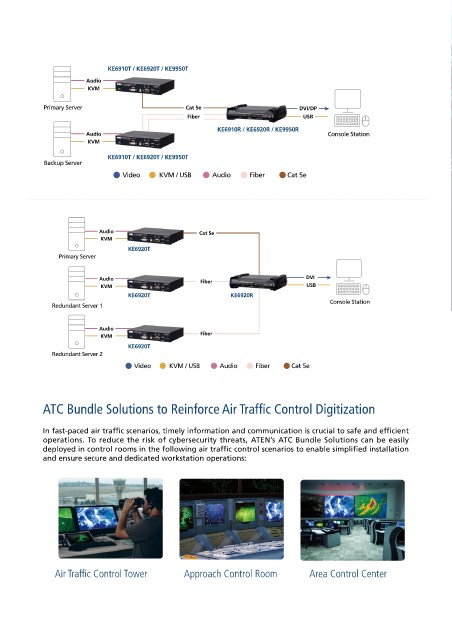

KE6910T / KE6920T / KE9950T
                        Audio
                        KVM

            Primary Server                        Cat 5e                        DVI/DP
                                                  Fiber                          USB
                                                          KE6910R / KE6920R / KE9950R
                        Audio                                                          Console Station
                        KVM
                             KE6910T / KE6920T / KE9950T
             Backup Server
                                 Video           KVM / USB            Audio           Fiber             Cat 5e








                           Audio                      Cat 5e
                            KVM
                                   KE6920T
                 Primary Server

                           Audio                      Fiber                       DVI
                            KVM                                                   USB
                                   KE6920T                    KE6920R
                                                                                        Console Station
               Redundant Server 1


                           Audio
                            KVM                       Fiber
                                   KE6920T
               Redundant Server 2
                                    Video           KVM / USB            Audio           Fiber             Cat 5e




            ATC Bundle Solutions to Reinforce Air Traffic Control Digitization


            In fast-paced air traffic scenarios, timely information and communication is crucial to safe and efficient
            operations. To reduce the risk of cybersecurity threats, ATEN’s ATC Bundle Solutions can be easily
            deployed in control rooms in the following air traffic control scenarios to enable simplified installation
            and ensure secure and dedicated workstation operations:
















               Air Traffic Control Tower         Approach Control Room             Area Control Center
