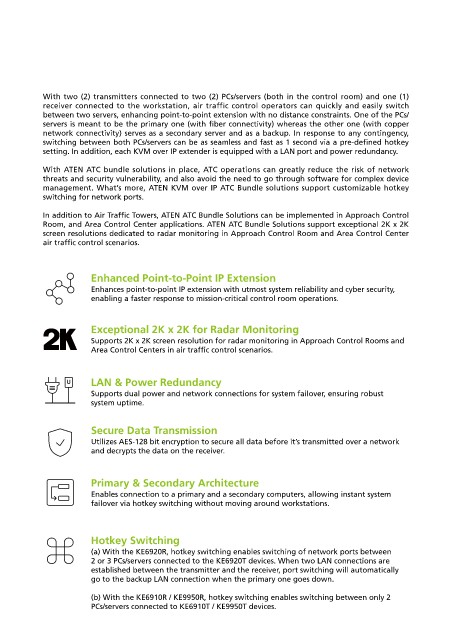

Page 3 - ATEN Air Traffic Control Solutions

With two (2) transmitters connected to two (2) PCs/servers (both in the control room) and one (1)
receiver connected to the workstation, air traffic control operators can quickly and easily switch
between two servers, enhancing point-to-point extension with no distance constraints. One of the PCs/
servers is meant to be the primary one (with fiber connectivity) whereas the other one (with copper
network connectivity) serves as a secondary server and as a backup. In response to any contingency,
switching between both PCs/servers can be as seamless and fast as 1 second via a pre-defined hotkey
setting. In addition, each KVM over IP extender is equipped with a LAN port and power redundancy.

With ATEN ATC bundle solutions in place, ATC operations can greatly reduce the risk of network
threats and security vulnerability, and also avoid the need to go through software for complex device
management. What’s more, ATEN KVM over IP ATC Bundle solutions support customizable hotkey
switching for network ports.

In addition to Air Traffic Towers, ATEN ATC Bundle Solutions can be implemented in Approach Control
Room, and Area Control Center applications. ATEN ATC Bundle Solutions support exceptional 2K x 2K
screen resolutions dedicated to radar monitoring in Approach Control Room and Area Control Center
air traffic control scenarios.

Enhanced Point-to-Point IP Extension
Enhances point-to-point IP extension with utmost system reliability and cyber security,
enabling a faster response to mission-critical control room operations.

Exceptional 2K x 2K for Radar Monitoring
Supports 2K x 2K screen resolution for radar monitoring in Approach Control Rooms and
Area Control Centers in air traffic control scenarios.

LAN & Power Redundancy
Supports dual power and network connections for system failover, ensuring robust
system uptime.

Secure Data Transmission
Utilizes AES-128 bit encryption to secure all data before it’s transmitted over a network
and decrypts the data on the receiver.

Primary & Secondary Architecture
Enables connection to a primary and a secondary computers, allowing instant system
failover via hotkey switching without moving around workstations.

Hotkey Switching
(a) With the KE6920R, hotkey switching enables switching of network ports between
2 or 3 PCs/servers connected to the KE6920T devices. When two LAN connections are
established between the transmitter and the receiver, port switching will automatically
go to the backup LAN connection when the primary one goes down.

(b) With the KE6910R / KE9950R, hotkey switching enables switching between only 2
PCs/servers connected to KE6910T / KE9950T devices.
