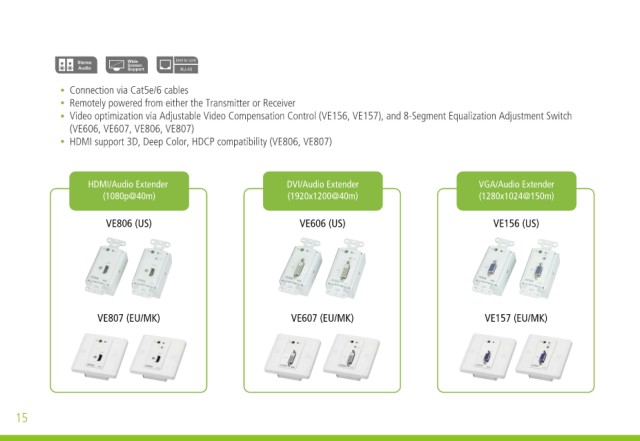

Page 15 - ATEN Product Series Guide - Wall Plate Extender Series Guide

Comparison Table

Connection Cat 5 / Cat 6
Connection via Cat5e/6 cables Video Interface HDMI DVI HDMI & VGA
Remotely powered from either the Transmitter or Receiver Type US MK / EU US MK / EU US MK / EU
Video optimization via Adjustable Video Compensation Control (VE156, VE157), and 8-Segment Equalization Adjustment Switch Model VE806 VE807 VE606 VE607 VE156 VE157
(VE606, VE607, VE806, VE807)
HDMI support 3D, Deep Color, HDCP compatibility (VE806, VE807)

HDMI/Audio Extender DVI/Audio Extender VGA/Audio Extender Inputs to Outputs 1 to 1
(1080p@40m) (1920x1200@40m) (1280x1024@150m) Max. Resolution / 1080p@40m; 1920 x 1200@40m; 1920 x 1200@30m;
Distance 1080i@60m 1280 x 1024@60m 1280 x 1024@150m
HDCP 1.4 1.4 N/A
VE806 (US) VE606 (US) VE156 (US) Audio • (HDMI / Stereo) • (Stereo) • (Stereo)

RS-232 Channel N/A N/A N/A
IR Channel N/A N/A N/A
POC Two way Two way Two way

2L-2801
VE807 (EU/MK) VE607 (EU/MK) VE157 (EU/MK) Suggested ATEN Cable 305M Low Skew Cat 5e Cable
• High quality RGB video transmission
• Delay Skew: 1 - 350MHz 20nS/100m Max
