Page 14 - ATEN Product Series Guide - Wall Plate Extender Series Guide

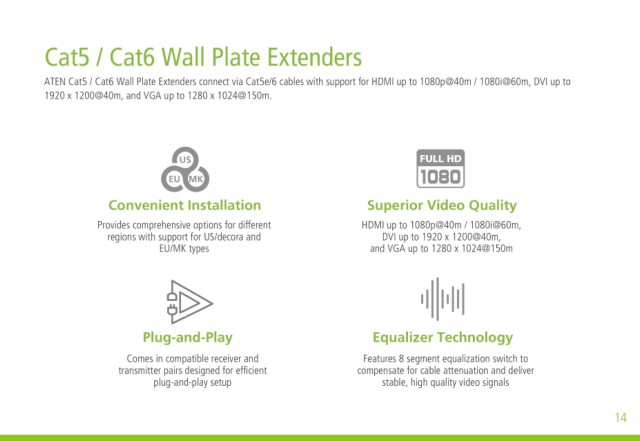

Comparison Table Cat5 / Cat6 Wall Plate Extenders

Connection HDBaseT* ATEN Cat5 / Cat6 Wall Plate Extenders connect via Cat5e/6 cables with support for HDMI up to 1080p@40m / 1080i@60m, DVI up to
Video Interface HDMI HDMI & VGA
Type US MK / EU US MK / EU 1920 x 1200@40m, and VGA up to 1280 x 1024@150m.
Model VE1801UST VE1801EUT VE2812AUST VE2812AEUT

US
Inputs to Outputs 1 Input 2 Inputs EU MK
Max. Resolution / 4K@40m 4K@100m
Distance 1080p@70m 1080p@100m Convenient Installation Superior Video Quality
HDCP 2.2 2.2
Long Reach Mode** N/A • (Active) Provides comprehensive options for different HDMI up to 1080p@40m / 1080i@60m,
Audio • (HDMI) • (HDMI / Stereo) regions with support for US/decora and DVI up to 1920 x 1200@40m,
RS-232 Channel • • EU/MK types and VGA up to 1280 x 1024@150m
IR Channel N/A •
POH N/A •

2L-2910
305M HDBaseT SF/UTP Cat 6 Cable
Suggested ATEN Cable
• Supports up to 4K resolution Plug-and-Play Equalizer Technology
• Verified to meet performance requirements set by HDBaseT Alliance
Comes in compatible receiver and Features 8 segment equalization switch to
transmitter pairs designed for efficient compensate for cable attenuation and deliver
* Ensure high quality maximum distance video transmission with ATEN HDBaseT Cat 6 Cable, 2L-2910. plug-and-play setup stable, high quality video signals
** Models marked 'Active' provide Long Reach Mode support which can be activated via a switch on the unit.
