VP1420
VP1421
Core Series

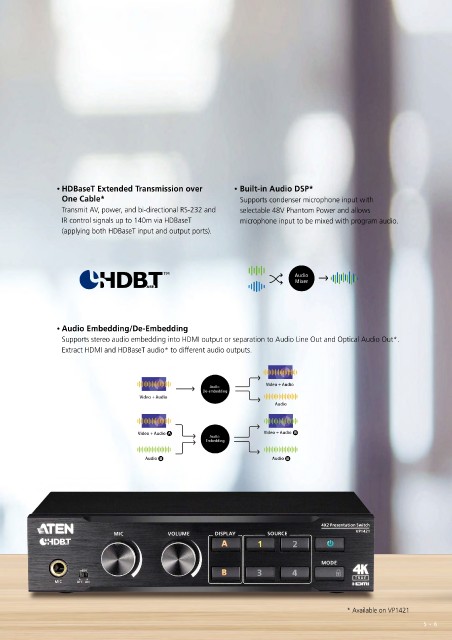

VP1420 4 x 2 True 4K Presentation Matrix Switch
VP1421 4 x 2 True 4K Presentation Matrix Switch HDBaseT Extended Transmission over Built-in Audio DSP*
One Cable*
Supports condenser microphone input with
with Scaling, DSP, and HDBaseT-Lite Transmit AV, power, and bi-directional RS-232 and selectable 48V Phantom Power and allows
IR control signals up to 140m via HDBaseT microphone input to be mixed with program audio.
(applying both HDBaseT input and output ports).
Integrating Everything You Need to Stand Out
The VP1420 and VP1421 are multi-in-one presentation switches that integrate video matrix, True 4K scaler, audio
processing, extension, and converter functions into a single compact enclosure to empower impactful, streamlined Audio
presentations in commercial and educational meeting spaces. Mixer
True 4K, HDR Visual Clarity Smooth Switching and Scaling Audio Embedding/De-Embedding
Supports resolutions up to 4096 x 2160 @ 60Hz Connect up to 4 multi-format sources, smoothly Supports stereo audio embedding into HDMI output or separation to Audio Line Out and Optical Audio Out*.
(4:4:4) and HDR to deliver vivid content in every switch between them and display contents scaled Extract HDMI and HDBaseT audio* to different audio outputs.
presentation. perfectly for True 4K and 1080p simultaneously.
Video Audio
Audio
De-embedding
Video Audio
Audio
Video Audio A Video Audio B
Audio
Embedding
Audio B Audio B
* Available on VP1421
