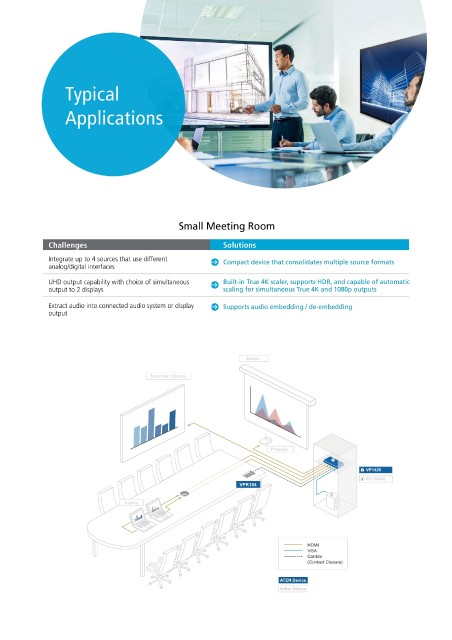

Typical

Applications

Small Meeting Room Medium Meeting Room

Challenges Solutions Challenges Solutions
Integrate up to 4 sources that use different Compact device that consolidates multiple source formats Projectors or displays are located up to 140m feet away Supports long distance transmission via HDBaseT
analog/digital interfaces from the source device

UHD output capability with choice of simultaneous Built-in True 4K scaler, supports HDR, and capable of automatic Control switching of sources from an easily accessible Switch sources directly via a Contact Closure Remote Pad
output to 2 displays scaling for simultaneous True 4K and 1080p outputs area located in an easy-to-reach location

Extract audio into connected audio system or display Supports audio embedding / de-embedding Support microphone input and the flexibility to mix with Mixes microphone input with other audio sources and
automatically reduces their volume when microphone signal
output other audio sources during presentations
is detected
Extract audio into connected audio system or display Supports audio embedding / de-embedding
output

Screen

Speaker
Secondary Display

HDMI
VGA
HDBaseT
Projector Audio Mic
Control Montior
1 (Contact Closure) Projector
1 VP1420 VPK104
ATEN Device
2 PC (VGA)
VPK104 Other Device
2 1
Laptop Laptop
Present contents
via Web Browser 2
3
Wall Plate Transmitter
HDMI
VGA
Control 1 VP1421
(Contact Closure)
2 Amplifier
ATEN Device 3 PC (VGA)
Other Device

7 8
