VP1920

Core Series

9 x 2 4K Presentation Matrix Switch

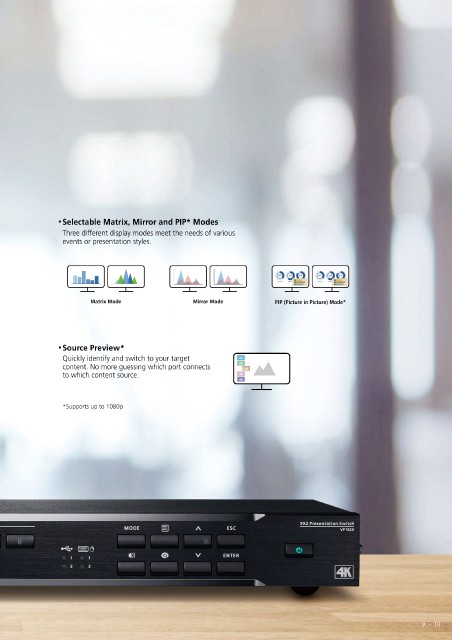

Empowering Multi-format 4K Presentations Selectable Matrix, Mirror and PIP* Modes

Three different display modes meet the needs of various
events or presentation styles.
The ATEN VP1920 is a 3-in-1 presentation switch integrating video matrix switching, audio processing and
analog-to-digital conversion. With nine inputs to two 4K outputs, it is designed to boost the efficiency and impact
of professional presentations.

With streamlined control from front panel pushbuttons, IR remote controller, OSD and RS232, the VP1920 A B C A B C
reduces not only system device count, but also lowers operation complexity. It is suitable for all small-to-medium
sized corporate and education presentation environments, such as meeting rooms, classrooms, training rooms, or Matrix Mode Mirror Mode PIP (Picture in Picture) Mode*
any other presentation setting, such as in exhibition centers or hotels.

Multi-format AV Switching USB Control Routing for PCs and Touch Panels Source Preview*
Smooth switching among 6 HDMI and 3 USB ports integrate PC and touch panel controls with Quickly identify and switch to your target
combo inputs (HDMI/VGA, HDMI/Display- other devices into one system. Independent switching of content. No more guessing which port connects
Port, HDMI/Component/Composite) to 2 USB peripheral ports and keyboard/mouse control focus. to which content source.
HDMI outputs and supports Coaxial, Toslink
and Stereo audio outputs.
*Supports up to 1080p
USB
VIDEO R L Control
HDMI DisplayPort
VGA
Y Pb/Cb Pr/Cr

VGA
