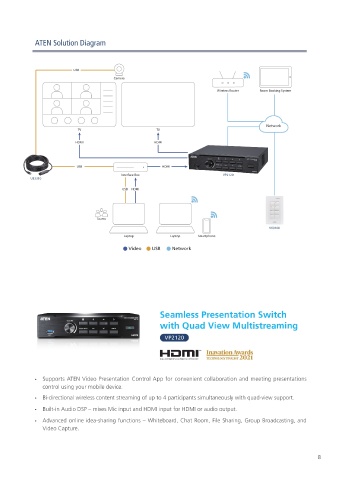

ATEN Solution Diagram

USB
Camera
Hybrid Small Meeting Room Wireless Router Room Booking System

Network
TV TV

HDMI HDMI

USB HDMI
Interface Box VP2120
UE3310
USB HDMI

Teams
VK0100
Laptop Laptop Smartphone

Video USB Network

The hybrid small-sized meeting room is for 4-6 people, suitable for general, daily
Background
communication, video calls, and a diversity of meeting room discussions.

① There may be a need for multi-information projection so multi-view presentation is needed Seamless Presentation Switch
Key to allow members to get information effectively for discussion.
Requirements with Quad View Multistreaming
② Participants need to use both wired and wireless connections for sharing without VP2120
interrupting the discussion by waiting for switching between projection laptops.

ATEN ① Multiple content sources can be wirelessly shared in quad view by VP2120 at the same time
Solution via browser login or a mobile app connection. • Supports ATEN Video Presentation Control App for convenient collaboration and meeting presentations
② Local presentations can be given using either a wired or a wireless connection. control using your mobile device.
③ Video conferencing can be conducted via BYOD by expanding laptop camera / mic functions Bi-directional wireless content streaming of up to 4 participants simultaneously with quad-view support.
in-room over a USB extender. •
• Built-in Audio DSP – mixes Mic input and HDMI input for HDMI or audio output.

• Advanced online idea-sharing functions – Whiteboard, Chat Room, File Sharing, Group Broadcasting, and
Video Capture.
