Page 19 - ATEN Product Series Guide - Hybrid Video Extension Solutions

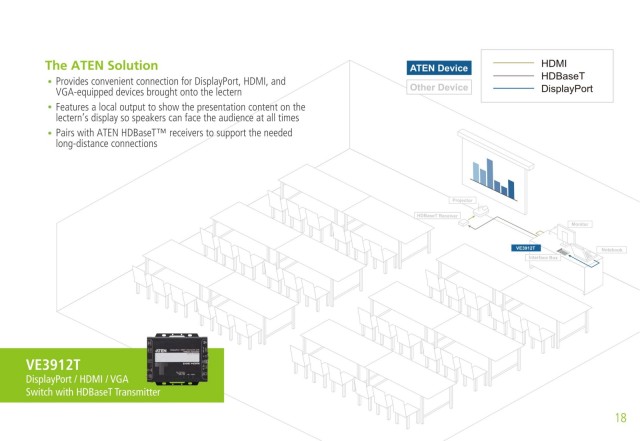

Training Rooms The ATEN Solution ATEN Device HDMI

Space Characteristics Provides convenient connection for DisplayPort, HDMI, and Other Device HDBaseT
A training room is a dynamic environment where people meet, learn, share ideas, and collaborate. The room is typically equipped with a lectern VGA-equipped devices brought onto the lectern DisplayPort
at the front for the presenter, and long desks facing it along with a projector screen and whiteboard. Technologies used provide the flexibility of Features a local output to show the presentation content on the
connecting conventional and legacy video interfaces from the presenters’ notebooks or source devices. lectern’s display so speakers can face the audience at all times
Pairs with ATEN HDBaseT™ receivers to support the needed
long-distance connections

Projector
HDBaseT Receiver
Monitor
VE3912T Notebook
Interface Box

VE3912T
VE3912T
DisplayPort / HDMI / VGA
Switch with HDBaseT Transmitter

17 18
