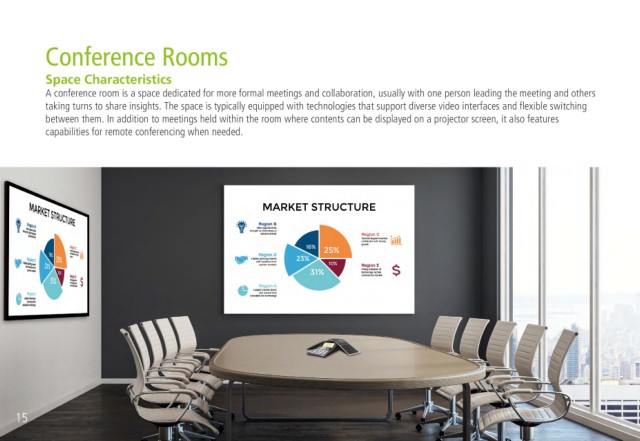

Conference Rooms The ATEN Solution Configuration 1: Local Meetings

Space Characteristics Provides convenient connection for DisplayPort, HDMI, and A meeting table with surrounding seats and a
projector with projection screen to display meeting
A conference room is a space dedicated for more formal meetings and collaboration, usually with one person leading the meeting and others VGA-equipped devices brought into the room contents for participants in the room.
taking turns to share insights. The space is typically equipped with technologies that support diverse video interfaces and flexible switching The space can be flexibly adjusted for remote conferencing
between them. In addition to meetings held within the room where contents can be displayed on a projector screen, it also features utilizing the local output for the in-room display
capabilities for remote conferencing when needed. Pairs with ATEN HDBaseT™ receivers to support the TV
needed long-distance connections

Projector
Configuration 2: Remote Conferencing
A meeting table with seats (varies with number of local VE2812R
participants) and a display with camera to share contents /
images between local and remote participants.
Interface Box VE3912T

HDMI
VGA
HDBaseT

VE3912T Notebook Audio
DisplayPort
DisplayPort / HDMI / VGA
Switch with HDBaseT Transmitter ATEN Device
Other Device
