Page 23 - ATEN Product Series Guide - Hybrid Video Extension Solutions

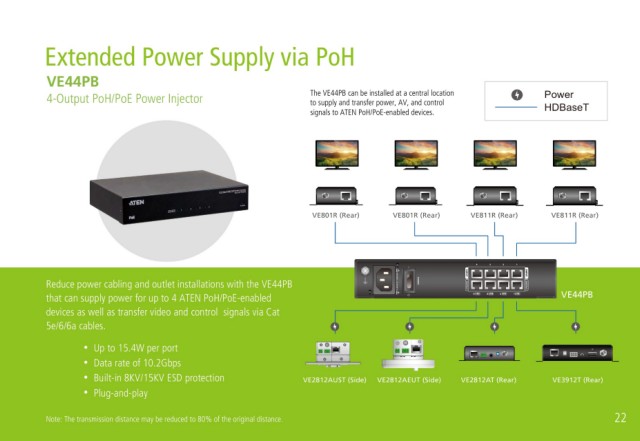

Compatible HDBaseT™ Receivers Extended Power Supply via PoH

VE44PB
Receiver Model VE2812R VE1812R VE814AR VE811R VE801R VE802R VE601R VE901R The VE44PB can be installed at a central location Power
4-Output PoH/PoE Power Injector to supply and transfer power, AV, and control
signals to ATEN PoH/PoE-enabled devices. HDBaseT


HDMI
Video Output (audio de- HDMI HDMI *2 HDMI HDMI HDMI DVI DisplayPort
embedding)
Transmission 4K up to 100m ; 4K up to 40m ;
Distance 1080p up to 150m (Long Reach mode enable) 1080p up to 70m VE801R (Rear) VE801R (Rear) VE811R (Rear) VE811R (Rear)

Long Reach Mode Yes N/A

HDBaseT 1.0 Class A 1.0 Class B
Reduce power cabling and outlet installations with the VE44PB
that can supply power for up to 4 ATEN PoH/PoE-enabled VE44PB
IR/RS-232 IR/RS-232 IR/RS-232 IR/RS-232 N/A N/A IR/RS-232 N/A N/A devices as well as transfer video and control signals via Cat
5e/6/6a cables.

Power over N/A YES N/A N/A N/A YES N/A N/A Up to 15.4W per port
HDBaseT Data rate of 10.2Gbps
Built-in 8KV/15KV ESD protection VE2812AUST (Side) VE2812AEUT (Side) VE2812AT (Rear) VE3912T (Rear)
Plug-and-play

21 Note: The transmission distance may be reduced to 80% of the original distance. 22
