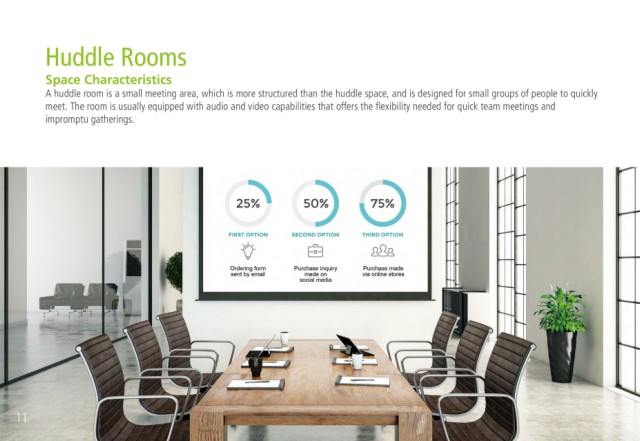

Huddle Rooms The ATEN Solution

Space Characteristics Provides convenient connection for HDMI and VGA-equipped devices brought onto the table
A huddle room is a small meeting area, which is more structured than the huddle space, and is designed for small groups of people to quickly Pairs with ATEN HDBaseT™ receivers to support the needed long-distance connections
meet. The room is usually equipped with audio and video capabilities that offers the flexibility needed for quick team meetings and Auto Switch enables source to be switched to the latest plugged-in source without the use of a
impromptu gatherings. remote control

Projector
HDBaseT Receiver

Interface Box
VE2812AT

Notebook
HDMI
VGA
HDBaseT
VE2812AT Audio
HDMI & VGA HDBaseT ATEN Device
Transmitter with POH
Other Device
