ATEN Digital Signage

Solutions in Action

Transportation Industry

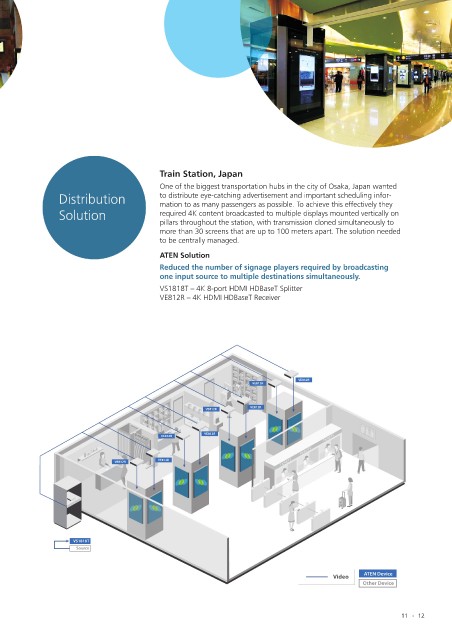

More and more public transportation facilities provide not only transportation information to travelers but also Train Station, Japan
advertisements from companies who want to get information to their target audience. As a result, increasing One of the biggest transportation hubs in the city of Osaka, Japan wanted
numbers of digital signage displays are being installed inside and around transportation hubs. All information to distribute eye-catching advertisement and important scheduling infor-
needs to be displayed in high quality while switching between sources needs to be seamless and easily managed. Distribution mation to as many passengers as possible. To achieve this effectively they
Solution required 4K content broadcasted to multiple displays mounted vertically on
pillars throughout the station, with transmission cloned simultaneously to
more than 30 screens that are up to 100 meters apart. The solution needed
Main Train Station, Taiwan to be centrally managed.
A large train station in Taipei was looking for a solution to build two 6x4 ATEN Solution
Video Wall video walls to showcase travel information and advertising. They required Reduced the number of signage players required by broadcasting
the ability to display different content in different layouts seamlessly and
Solution the first-floor hall video walls needed to be able to project content from one input source to multiple destinations simultaneously.
three separate OTT BOX image sources. In addition, operators needed to VS1818T – 4K 8-port HDMI HDBaseT Splitter
be able to control the advertising system remotely via their own control VE812R – 4K HDMI HDBaseT Receiver
system to change advertising content and also to be able to schedule the
advertising content displayed on the screen.

ATEN Solution
Integrated seamlessly with the existing A/V distribution architecture
to provide continuous video streams, real-time control and stable
signal transmissions for customized video wall layouts.
VM5808H – 8x8 HDMI Matrix Switch
