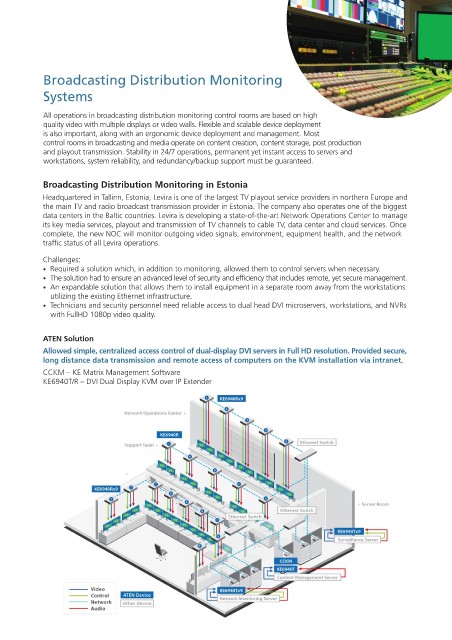

Page 16 - ATEN Control Room Solutions Guide

ATEN Featured

Broadcasting Distribution Monitoring
Systems Products

All operations in broadcasting distribution monitoring control rooms are based on high
quality video with multiple displays or video walls. Flexible and scalable device deployment
is also important, along with an ergonomic device deployment and management. Most
control rooms in broadcasting and media operate on content creation, content storage, post production
and playout transmission. Stability in 24/7 operations, permanent yet instant access to servers and ATEN Control and Operation Solution
workstations, system reliability, and redundancy/backup support must be guaranteed.
KVM over IP Matrix System Desktop Multi-View KVMP™ Switch
Broadcasting Distribution Monitoring in Estonia KE6900 / KE6940 CM1164
KE8950 / KE8952
Headquartered in Tallinn, Estonia, Levira is one of the largest TV playout service providers in northern Europe and
the main TV and radio broadcast transmission provider in Estonia. The company also operates one of the biggest CCKM
data centers in the Baltic countries. Levira is developing a state-of-the-art Network Operations Center to manage
its key media services, playout and transmission of TV channels to cable TV, data center and cloud services. Once
complete, the new NOC will monitor outgoing video signals, environment, equipment health, and the network
traffic status of all Levira operations.

Challenges:
• Required a solution which, in addition to monitoring, allowed them to control servers when necessary.
• The solution had to ensure an advanced level of security and efficiency that includes remote, yet secure management.
• An expandable solution that allows them to install equipment in a separate room away from the workstations
utilizing the existing Ethernet infrastructure. ATEN Video Wall Solution
• Technicians and security personnel need reliable access to dual head DVI microservers, workstations, and NVRs
with FullHD 1080p video quality. Modular Matrix Switches with
Video Wall Processor
ATEN Solution VM1600 / VM3200
Allowed simple, centralized access control of dual-display DVI servers in Full HD resolution. Provided secure,
long distance data transmission and remote access of computers on the KVM installation via intranet.
CCKM – KE Matrix Management Software
KE6940T/R – DVI Dual Display KVM over IP Extender

ATEN Video Distribution Solution

Video Splitters Wall Plates
VS182A / VS184A / VS0108HA VE806 / VE606 / VE156
VS0102 / VS0104 / VS0108
VS172 / VS174
VS162 / VS164
VS146

Video Extenders
• HDBaseT • Fiber & AOC
VE812 / VE813 / VE814 / VE801 / VE882 / VE892
VE802 / VE601 / VE901 VE872 / VE873
VE874 / VE875

13 14
