Command Control Centers Traffic Management Centers
Command control centers, associated most often with government and military
agencies, rely on highly responsive, resilient yet secure operations for rich content
integration, real-time interagency collaboration, and seamless mass-distribution of
critical instructions, notifications, and alerts to facilitate effective collaboration and
decision-making. Military command control centers also require multi-classification
levels for system operation and data access, as well as system authentication and
secure data distribution.

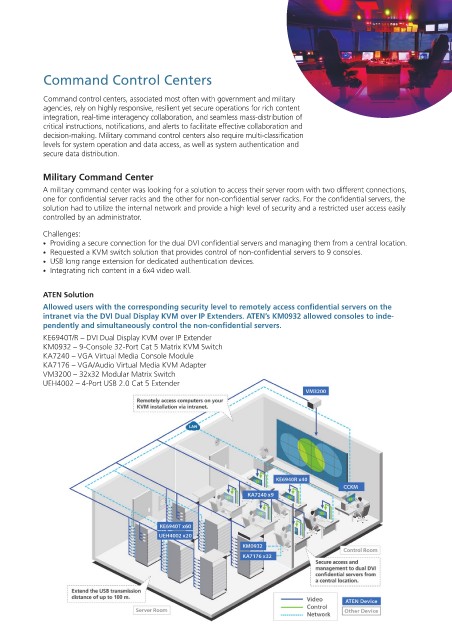

Military Command Center
A military command center was looking for a solution to access their server room with two different connections,
one for confidential server racks and the other for non-confidential server racks. For the confidential servers, the
solution had to utilize the internal network and provide a high level of security and a restricted user access easily
controlled by an administrator.
Challenges:
• Providing a secure connection for the dual DVI confidential servers and managing them from a central location.
• Requested a KVM switch solution that provides control of non-confidential servers to 9 consoles.
• USB long range extension for dedicated authentication devices.
• Integrating rich content in a 6x4 video wall.
ATEN Solution
Allowed users with the corresponding security level to remotely access confidential servers on the
intranet via the DVI Dual Display KVM over IP Extenders. ATEN’s KM0932 allowed consoles to inde-
pendently and simultaneously control the non-confidential servers.
KE6940T/R – DVI Dual Display KVM over IP Extender
KM0932 – 9-Console 32-Port Cat 5 Matrix KVM Switch
KA7240 – VGA Virtual Media Console Module
KA7176 – VGA/Audio Virtual Media KVM Adapter
VM3200 – 32x32 Modular Matrix Switch
UEH4002 – 4-Port USB 2.0 Cat 5 Extender
Traffic management control rooms, the nerve centers of traffic monitoring and
operations, need to access and manage 24/7 video surveillance to ensure quick
incident detection and optimal response as well as proactively controlling signals to
avoid congestion. Other vital tasks include real-time traffic video management for
various purposes, including the provision of video support for law enforcement
activities. In addition, the use of data from different sources in real-time and
processing information to take immediate decisions is the key to successful traffic
management in smart cities.
Traffic Control Center, Thailand
Chiang Mai is the largest city in Northern Thailand and has an increasing number of tourists each year. The
growth of crime and traffic accidents in the city has affected the economy and society as a whole. The Chiang
Mai Municipality is planning to install a digital surveillance system on the main streets of the city by 2020 to
monitor the public areas and ensure the safety of the public and its property.
Challenges:
• Centralized and real-time monitoring of the video captured from cameras in various locations that are transmitted
to the traffic control center in the municipal office.
• Displaying clear images with fine detail captured by 5-Megapixel cameras to be shown on a large video wall
for analyzing events
• Providing a cost-effective solution that allows video wall monitoring of their digital surveillance system.
ATEN Solution
The ATEN modular matrix switch integrated seamlessly with the surveillance system to provide
centralized management of video from multiple cameras in different locations to help officers take
action when events occur.
VM1600 – 16x16 Modular Matrix Switch
VE800A – HDMI Cat 5 Extender
VS182A – 2-Port 4K HDMI Splitter
