Multiuse Learning Spaces

The multiuse learning space is often used in specialized trades such as cooking that Products
require students to observe teaching demonstrations precisely in order to replicate
them. The high number of video monitors in this learning environment necessitates
multiple input and output sources. And since students need to be able to view the teacher’s
movements with total accuracy, the video has to be of the highest 4K quality so that no details are missed.
ATEN Lecture Format Solution

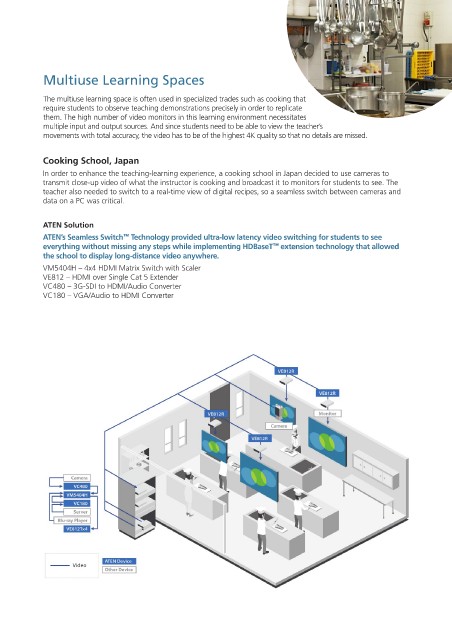

Cooking School, Japan
In order to enhance the teaching-learning experience, a cooking school in Japan decided to use cameras to HDMI HDBaseT-Lite Matrix Switch HDMI HDBaseT-Lite Extender
transmit close-up video of what the instructor is cooking and broadcast it to monitors for students to see. The VM3909H with POH
teacher also needed to switch to a real-time view of digital recipes, so a seamless switch between cameras and VE802
data on a PC was critical.

ATEN Solution
™
ATEN’s Seamless Switch Technology provided ultra-low latency video switching for students to see
everything without missing any steps while implementing HDBaseT extension technology that allowed HDMI Switch with Dual Output
™
the school to display long-distance video anywhere. VS482
VM5404H – 4x4 HDMI Matrix Switch with Scaler
VE812 – HDMI over Single Cat 5 Extender
VC480 – 3G-SDI to HDMI/Audio Converter
VC180 – VGA/Audio to HDMI Converter

ATEN Interactive Learning Solution

Modular Matrix Switches
with Video Wall Processor

VM1600 / VM3200

Control Box HDMI HDBaseT Extenders
VK2100 VE812/VE814

ATEN 4K Scaling Solution

4K HDMI Matrix Switch with Scaler HDMI HDBaseT Extenders
VM6404H VE812/VE814
