Classroom

Scenarios

Lecture
1 Halls

Lecture halls are large scale classroom settings and are used primarily for university classes.
The importance of a lecture hall is that, first and foremost, it operates as a centralized
presentation space to convey content information to as large an audience as possible all at once. Usually, the
main presentation space incorporates a screen and large venue projector, while a secondary display can allow for ATEN Suggested Solution:
dual content sources to be shown. Solutions that incorporate cameras into the space can also help to create a
truly collaborative and engaging learning environment. ATEN Control System

Challenges: HDMI Matrix Switch with Scaler
• Display content simultaneously in a large, centralized area USB DVI Multi-View/Audio KVMP Switch
• Possess individual audio and video processing systems
• Cope with wide range of signals such as projectors, video conferencing systems, PCs, and DVD HDMI HDBaseT-Lite Extender
• Allow presenters to quickly set up and switch between different content sources to save time Power Distribution Unit

ATEN Suggested Solution:
HDMI Matrix Switch
HDMI HDBaseT Extender / HDMI Cat 5 Extender

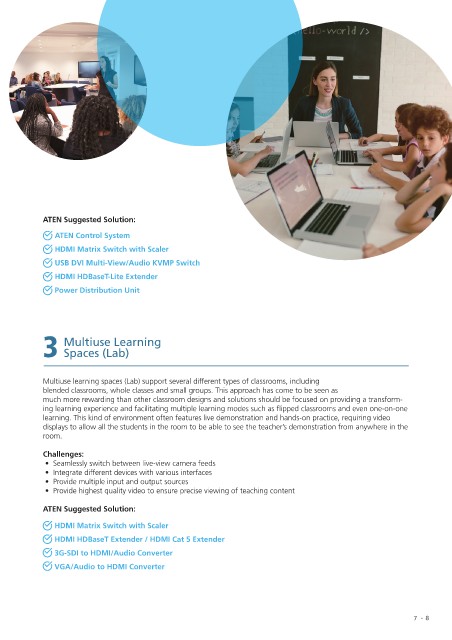

Multiuse Learning
4K HDMI Splitter 3 Spaces (Lab)

Multiuse learning spaces (Lab) support several different types of classrooms, including
blended classrooms, whole classes and small groups. This approach has come to be seen as
Active Learning much more rewarding than other classroom designs and solutions should be focused on providing a transform-
2 Classrooms (ALC) ing learning experience and facilitating multiple learning modes such as flipped classrooms and even one-on-one
learning. This kind of environment often features live demonstration and hands-on practice, requiring video
displays to allow all the students in the room to be able to see the teacher’s demonstration from anywhere in the
Active learning classrooms are specifically designed to provide both students and teachers room.
shared access to the learning space and to enable them be interactive and collaborative,
allowing students to share content from their laptops and mobile devices with the class- Challenges:
room. As active learning is a philosophy as opposed to a type of technology, the very best active learning • Seamlessly switch between live-view camera feeds
classrooms have been planned from the start with this approach in mind. And well-designed spaces play a • Integrate different devices with various interfaces
large part in the optimal usage of classroom technologies. For this reason, solutions that incorporate intuitive • Provide multiple input and output sources
equipment and require minimal training are the most effective for this kind of technology-rich learning space. • Provide highest quality video to ensure precise viewing of teaching content

Challenges: ATEN Suggested Solution:
• Simplify management of multiple devices HDMI Matrix Switch with Scaler
• Feature simultaneous displays that can switch between multiple sources frequently and without lag
• Provide multiple inputs and outputs and ability to centrally control content from anywhere HDMI HDBaseT Extender / HDMI Cat 5 Extender
• Integrate different audio and video interfaces including legacy VGA devices
3G-SDI to HDMI/Audio Converter
VGA/Audio to HDMI Converter
