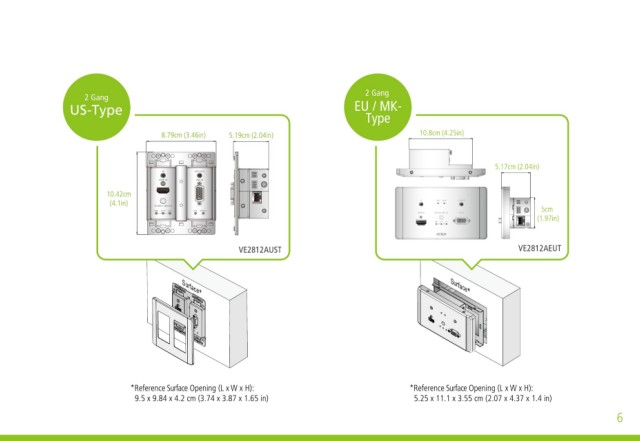

Size Compatible with US, EU, MK Standards
ATEN US/decora-type wall plate extenders can be conveniently mounted in standard wall boxes. In addition, the EU/MK-type wall plates are
designed with minimal dimension requirements which are compatible to fit both EU and MK standards across different regions. 2 Gang 2 Gang
US-Type EU / MK-
Type
1 Gang
1 Gang
US-Type EU / MK-
4.44cm (1.75in) Type
4.10cm (1.61in)
10.41cm (4.1in)
6.86cm (2.7in)
VE2812AUST VE2812AEUT
4.10cm (1.61in) 4.44cm (1.75in)
VE1801UST VE1801EUT Surface Surface
Surface
Wall Box
*Reference Surface Opening (L x W x H): *Reference Surface Opening (L x W x H):
Face Plate *Reference Surface Opening (L x W x H): 9.5 x 9.84 x 4.2 cm (3.74 x 3.87 x 1.65 in) 5.25 x 11.1 x 3.55 cm (2.07 x 4.37 x 1.4 in)
7.1 x 5.2 x 4.4 cm (2.8 x 2.05 x 1.73 in)
