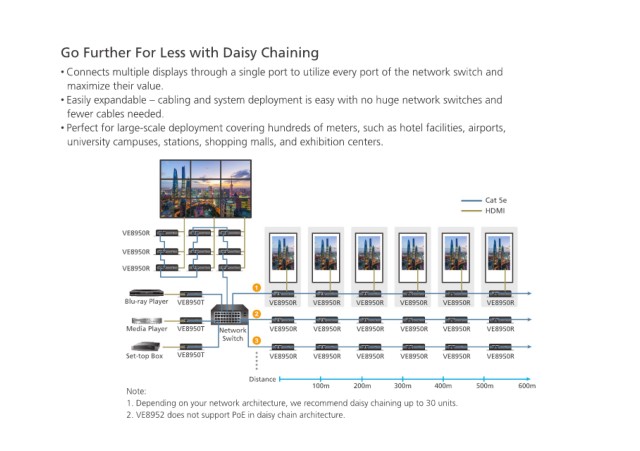

Go Further For Less with Daisy Chaining

• Connects multiple displays through a single port to utilize every port of the network switch and
maximize their value.
• Easily expandable – cabling and system deployment is easy with no huge network switches and
fewer cables needed.
• Perfect for large-scale deployment covering hundreds of meters, such as hotel facilities, airports,
university campuses, stations, shopping malls, and exhibition centers.

Cat 5e
HDMI

VE8950R
VE8950R
VE8950R
1
Blu-ray Player VE8950T VE8950R VE8950R VE8950R VE8950R VE8950R VE8950R
2
Media Player VE8950T Network VE8950R VE8950R VE8950R VE8950R VE8950R VE8950R
Switch 3
Set-top Box VE8950T VE8950R VE8950R VE8950R VE8950R VE8950R VE8950R

Distance
Note: 100m 200m 300m 400m 500m 600m
1. Depending on your network architecture, we recommend daisy chaining up to 30 units.
2. VE8952 does not support PoE in daisy chain architecture.
